MiBoxer FUT037 Mi.light 4-Zone Control RGB Strip Light Dimmable Led Cotroller Dimmer Control Driver

Availability: In stock

€4.45

Qty:

-OR- -OR-

Quick Overview

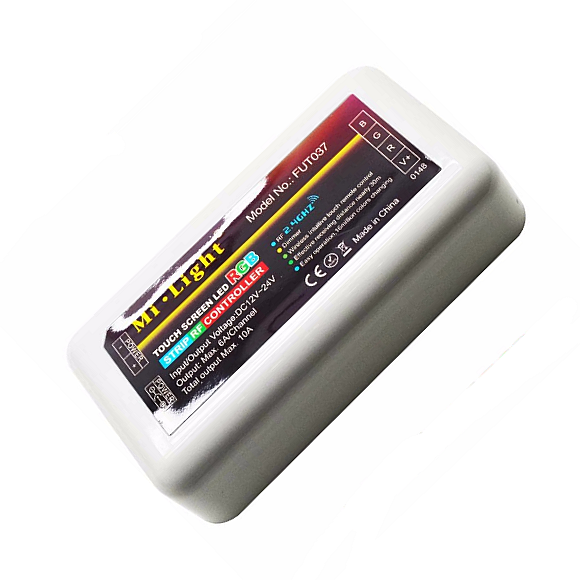

Mi.light 4-Zone Control RGB FUT037 LED Strip Light Dimmable Controller

MiBoxer FUT037 Mi.light 4-Zone Control RGB Strip Light Dimmable Led Cotroller Dimmer Control Driver

Double click on above image to view full picture

MiBoxer FUT037 Mi.light 4-Zone Control RGB Strip Light Dimmable Led Cotroller Dimmer Control Driver

Technical Data:

Size: 85 x 45 x 23mm

Working voltage: DC12-24V,

Input method: DC 5.5*2.1 Female connector input and 2 wire(+ -) input

Control way: R G B Three Channels (Red Green Blue )

Max Load per channel: 6A, total: 3*6A=18A

Output connection: Common anode

Control distance: approx 30 meters ( 98.43 ft )

The Controller will keep the last mode in memory by power switch on/off

Programs: 9 Kinds

Package included:

1 piece of Mi.light 4-Zone Control RGB FUT037 LED Strip Light Dimmable Controller

1 piece of 3M Sticker

1 piece of user's manual

4_Zone_Control_RGB_8 4_Zone_Control_RGB_2 4_Zone_Control_RGB_3 4_Zone_Control_RGB_4 4_Zone_Control_RGB_5 4_Zone_Control_RGB_6 4_Zone_Control_RGB_7

CE and RoHS approved

Weight	0.0800
