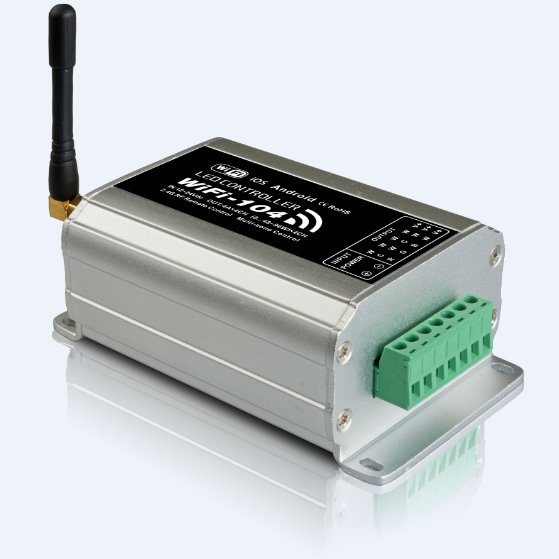

LTECH WiFi-104 WiFi LED Lighting Controller DC12V~DC24V Input Voltage

Be the first to review this product

Availability: In stock

€84.31
  • OR

    Quick Overview

    LTECH WiFi-104 WiFi LED Lighting Controller DC12V~DC24V Input Voltage

    LTECH WiFi-104 WiFi LED Lighting Controller DC12V~DC24V Input Voltage

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Wifi-104 Lighting Control System

    WiFi-104 is a versatile office/home lighting control system. Through WiFi function build-in mobile devices could control various types of LED lighting products after installing related software on our ios or Android phones, tablet PCs and other mobile devices. It makes the led lighting control more intelligence, networking and humanization.

    WiFi-104 lighting control system integrated with four functional controls including dimming, color temperature adjusting, RGB and RGBW, which could be set as single color, color temperature(nature white+warm white and nature white+warm white+cool white), RGB and RGBW five types. It can simply control various of led lightings which has installed on WiFi software. Meanwhile, it supports max 12 zones control. We could do for you what you think!

    WiFi - 104 control system supports direct or through a router two network connection mode:

    As a direct way, mobile phone, pad can directly control the WiFi - 104 controller + R4-5A or R4-CC a wireless control, without any third party of network equipment ;

    Through a router connection, in addition to reach all the functions of direct connection, and will not affect the normal Internet access router at the same time, a more important role is to support the software interface to switch muti-control systems, control independent of each other systems more convenient , for example, there are two sets of systems, can support 24 areas.

    In addition, you can DIY the lighting on software according to your habits. You can DIY any color, any changing you like. It will let yourself relish in your sense of accomplishment for your special life colour.

    You can also use our 2.4G RF remote M12 if there is no software, more options for you.

    WiFi-104 Controller

    Communication standard  2.4GHz Wi-Fi, 802.11b/g/n protocol

    Input voltage  DC12V~DC24V

    Max current load  4A x4CH Max 16A

    Max output power  192W/384W(12V/24V)

    Control distance  Max 100m

    Working temperature  -20~50

    Dimensions  L128*W73*H45mm

    Package size  L135*W80*H50mm

    Weight (G.W.)  290g

    M12 Remote Control

    Working voltage  DC3V(Battery CR2032 )

    Working Frequency  2.4GHz

    Remote Distance  50m

    Dimensions  L104*W60*H9mm

    Weight (N.W.)  42g

    R4-5A CV Zone Receiving controller

    Working Frequency  2.4GHz

    Input voltage  DC5V~DC24V

    Max current load  5A x4CH Max 20A

    Max output power  100W/240W/480W(5V/12V/24V)

    Remote Distance  30m

    Working temperature  -30~55

    Dimensions  L175*W44*H30mm

    Package size  L178*W48*H33mm

    Weight (G.W.)  110g

    R4-CC CC Zone Receiving controller

    Working Frequency  2.4GHz

    Input voltage  DC12V~DC48V

    Output voltage  DC3V~46V

    Output current  CC 350/700/1050mA×4CH(3 in 1)

    Output power  1.05W-48.3W×4CH

    Remote Distance  30m

    Working temperature  -30~55

    Dimensions  L175×W44×H30mm

    Package size  L178×W48×H33mm

    Weight (G.W.)  110g

    Package included :

    1 Piece of LTECH WiFi-104 WiFi LED Lighting Controller DC12V~DC24V Input Voltage

    LTECH_WiFi_Controller_LTECH_WiFi_104_1LTECH_WiFi_Controller_LTECH_WiFi_104_2LTECH_WiFi_Controller_LTECH_WiFi_104_3LTECH_WiFi_Controller_LTECH_WiFi_104_4LTECH_WiFi_Controller_LTECH_WiFi_104_5LTECH_WiFi_Controller_LTECH_WiFi_104_6LTECH_WiFi_Controller_LTECH_WiFi_104_7LTECH_WiFi_Controller_LTECH_WiFi_104_8LTECH_WiFi_Controller_LTECH_WiFi_104_9LTECH_WiFi_Controller_LTECH_WiFi_104_10LTECH_WiFi_Controller_LTECH_WiFi_104_11LTECH_WiFi_Controller_LTECH_WiFi_104_12LTECH_WiFi_Controller_LTECH_WiFi_104_13LTECH_WiFi_Controller_LTECH_WiFi_104_14LTECH_WiFi_Controller_LTECH_WiFi_104_15LTECH_WiFi_Controller_LTECH_WiFi_104_16LTECH_WiFi_Controller_LTECH_WiFi_104_17LTECH_WiFi_Controller_LTECH_WiFi_104_18LTECH_WiFi_Controller_LTECH_WiFi_104_19LTECH_WiFi_Controller_LTECH_WiFi_104_20

    Great Choice for Green Life, CE and RoHS Approved
