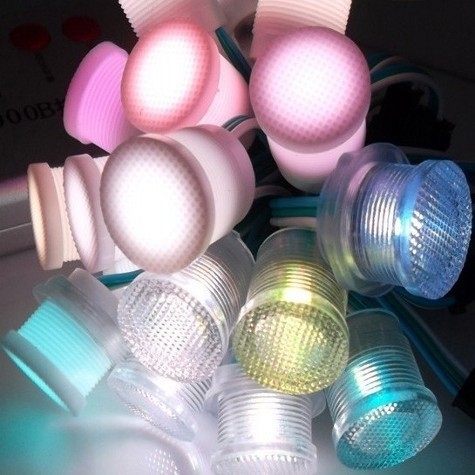

20mm 5V UCS1903 RGB SMD5050 Waterproof LED Pixel Point Light

Be the first to review this product

Availability: In stock

€10.55

Quick Overview

20mm 5V UCS1903 RGB SMD5050 Waterproof LED Pixel Point Light

* Required Fields

€10.55
  • 20mm 5V UCS1903 RGB SMD5050 Waterproof LED Pixel Point Light

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Specification:

    1) Working Voltage:  DC 5V

    2) IC type: UCS1903

    3) IC quantity: 1 piece per light, total 20 ICs for 1 string

    4) LED type: SMD 5050 RGB

    5) LED quantity:1 LED per light, total 20 LEDs

    6) Pixel: each module is one pixel

    7) Max power: 0.24W/piece. 20 Pcs for 1 sting, total 4.8W for 1 sting

    8) Bit: 8

    9) Greyscale: 256 levels

    10) Diameter: 20mm, waterproof protection

    11) Package: 20 pieces/string

    12) Distance between lights: 100mm

    Cover Style: Pls Choose; Transparent Cover or Frosted Cover

    Connection

    1) Signal wire: DC+, DAT, GND

    2) DC+ and GND connect to power supplier; DAT and GND connect to controller

    3) Relative Controller: SPI controller support UCS1903; when use DMX decorder, can connect to DMX system

    4) Support online control

    Color

    1) Each pixel can be controlled individually

    2) Can show any color

    3) Can be used as flexible led display screen to show image and video

    Installation Notice

    1) Make sure the connection is correct according to the diagram

    2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value

    Package include:

    1 Sting of 20 pcs 20mm 5V UCS1903 RGB SMD5050 Waterproof LED Pixel Point Light

    CE and RoHS approved

    Additional Information

    Weight 1.0000
