Details
Connector number: 1 Or 4
Working temperature: -20~60 celsius
Supply voltage: DC 12~24V
Controller dimension: L124 x W56 x H6mm
Output: 3 channels
Output current: <2 A (each channel)
Connecting mode: common anode
1: This controller can support max 5 meters 60 LEDs/m RGB strip or 10 meters 30 LEDs/m RGB strip
2: The remote control can operate on more than one control box.
3: 20 static colors
4: Color changing modes
5: Over thousands of mixed color from the choice of "Red + / -", "Green +/-" & "Blue +/-", can save to 6 different DIY keys.
4 output connectors, can connect 4 RGB LED strips at the same time
Package included

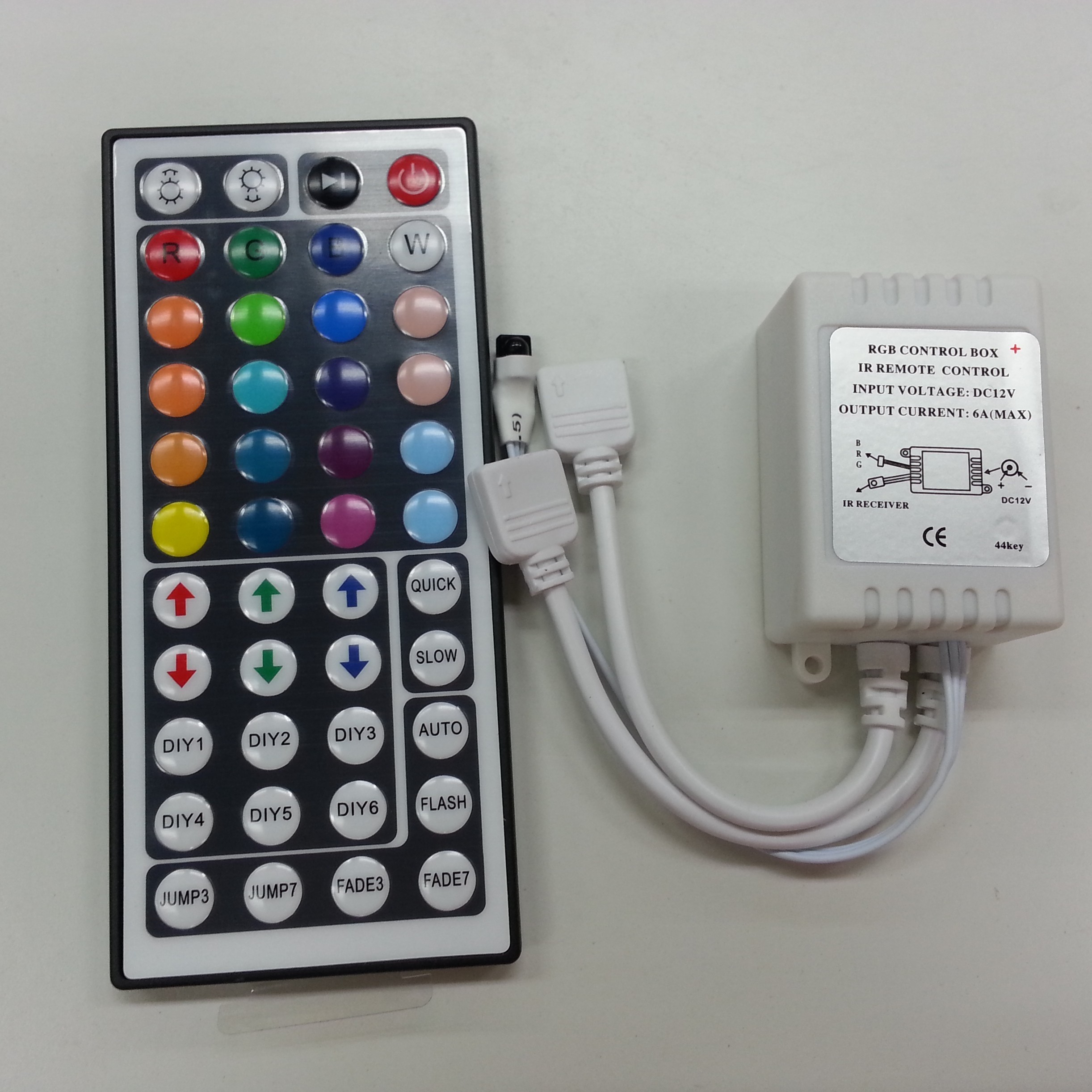

1 Piece of 44 Keys IR Remote Control RGB LED Controller 12V 24V
1 Piece of IR Remote
1 Piece of User Manual
CE and RoHS approved
Additional Information
Weight | 0.0850 |
---|
