Details
Basic Features:
With LCD display and built-in WEB SERVER setting interface, easy operation.
Support Ethernet DMX protocol ArtNet, can be expanded to other protocols.
Multi SPI (TTL) signal output, up to 5440 pixels control.
Output DMX512 signal at the same time, convenient for the connection of different types led lamp.
Support various LED driving IC,flexible control.
Support online firmware upgrade.
Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit.
Built-in test mode, using a network interface with indicator light, work status is clear when at a glance.
Specifications:

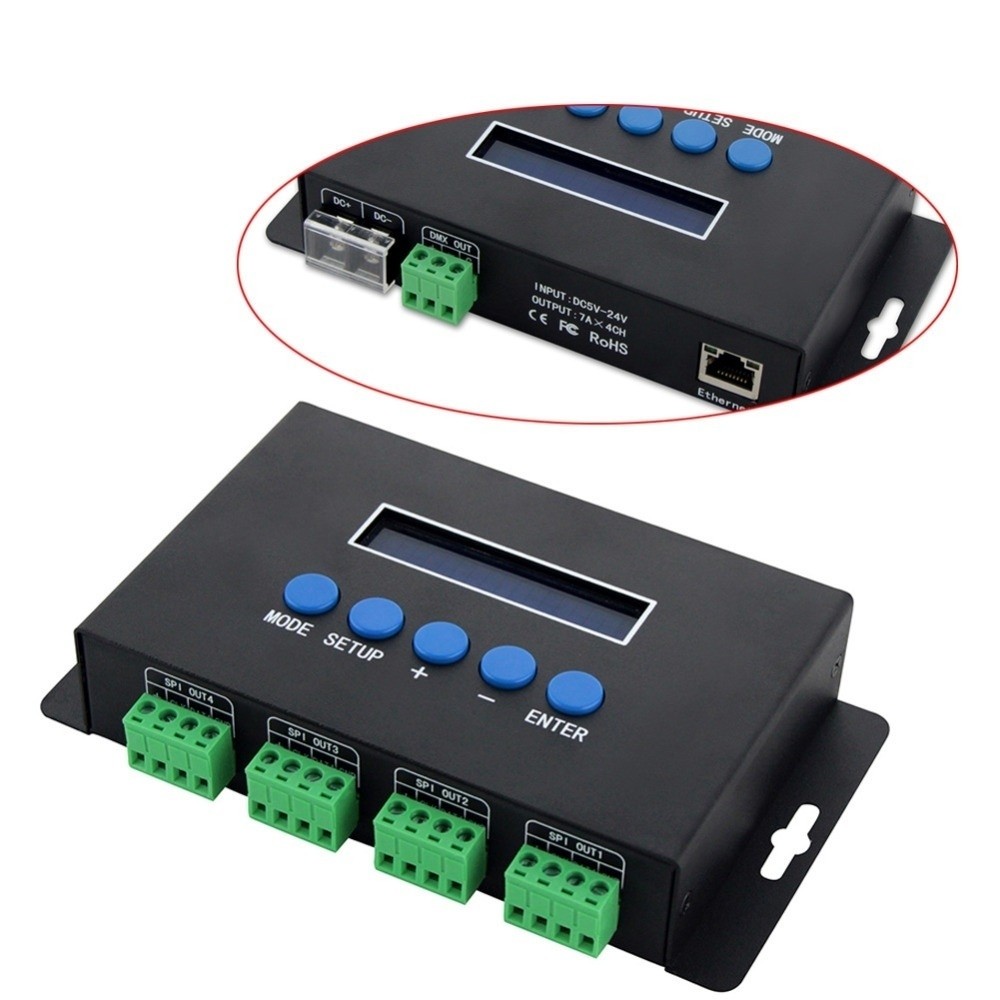

Model: BC-204
Working Voltage: DC5-DC24V
Output Current: 7A X 4CH(Built-in 7.5A fuse）
Input Ethernet control protocol: ArtNet
Output Control IC: 2811/2801/6803/3001/8806/APA102/9813/TM1814/SK6812 Series
Control Pixels: RGB：680 Pixels X4CH RGBW：512 Pixels X4CH
Output DMX512: One port(1X512 Channels)
Working Temp: -20~55℃
Product Dimension: L166×W110×H31(mm)
Weight(G.W): 510g
Package Content:
1 Piece of BC-204 Artnet to SPI DMX Pixel Light Bincolor Led Controller Eternet Protocol 5V-24V
1 Piece of User's manual
CE and RoHS approved
CE and RoHS approved
