Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. user can choose 1~3 output channels, 4096 Grey Scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.
Specifications:

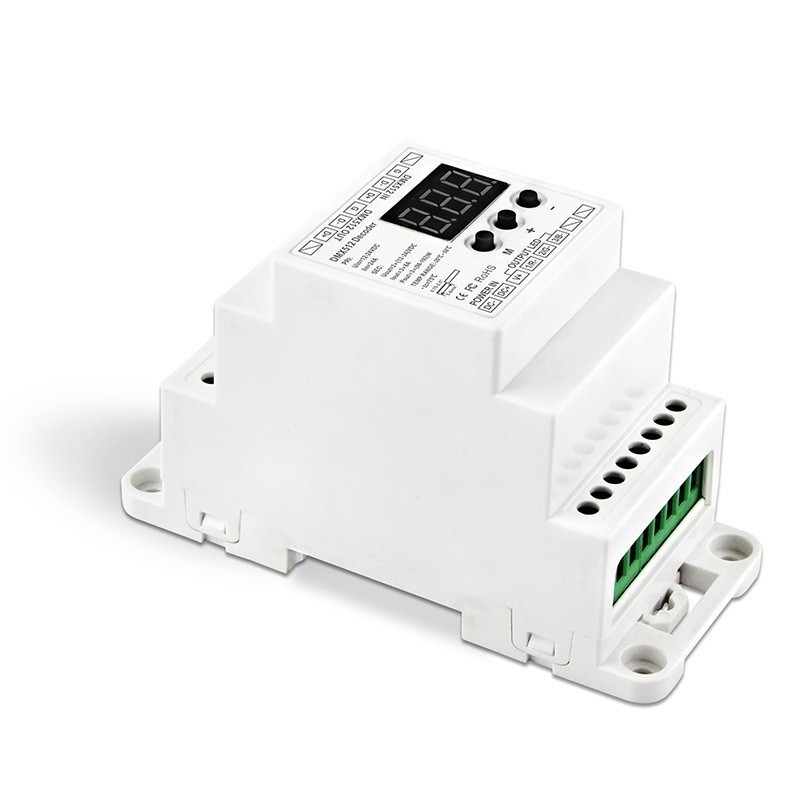

Model: 3CH Constant Voltage decoder
Input voltage: DC12V-DC24V
Max load current: 3CH×8A
Max Output Power: 288W(12V)/576W(24V)
Grey Scale: 4096 levels×3
Input Signal: DMX512/1990
Output Signal: Constant Voltage PWM
Decode Channel: 3CH
DMX512 socket: Terminal Block
Dimension: L111×W46×H66(mm)
Weight (G.W): 138g
Package Content:
1 Piece of BC-833-DIN Bincolor Led Controller 3CH DIN Rail 3CH DMX512/1990 Decoder
1 Piece of User's manual
CE and RoHS approved
CE and RoHS approved
