Details
Welcome to use the Constant Voltage DMX512 Decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. User can choose 1~3 output channels, 4096 Grey Scales. Multiple DMX512 signal interface.
Basic Features:
Automatically adapts input voltage DC12V-24V.
Input standard DMX512 signal; 3-digital-display shows DMX address.
3 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.
Support master mode or slave mode;
8 color changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Power loss memory function.
Over current protection and short circuit protection.Wrong wiring protection at DMX prot.
Multiple DMX512 signal interface.
Specification

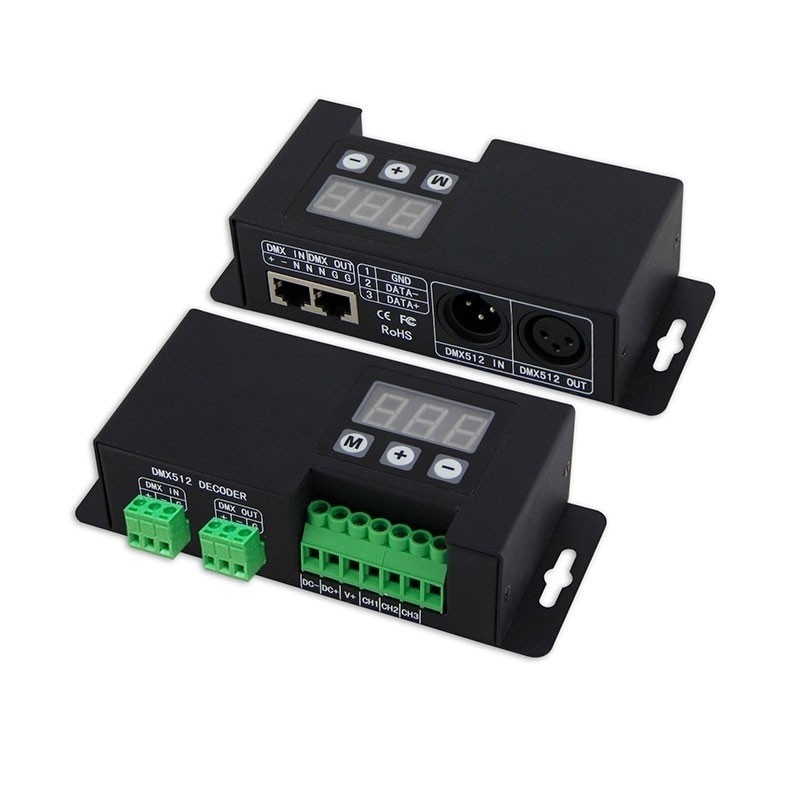

BC-853-CC 3CH DMX512 Decoder
Product Model:BC-853-CC
Input voltage:DC12V-DC48V
Max load current:350mA/load X3 or 700mA/load X3
Max output power:1-12pcs 1W LED or 1-12pcs 3W LED
Grey Scale:4096 levels×3
Input Signal:DMX512/1990
Output Signal:Constant Current PWM×3
Decode Channel:3CH
DMX512 socket:XLR-3R port/ RJ45 port/ terminal block
Dimension:L157×W65×H40(mm)
Weight (G.W):450g
Package Content:
1 Piece of BC-853-CC Bincolor Led Controller 3CH RGB Dmx Master PWM DMX512 Decoder Driver
1 Piece of User's manual
CE and RoHS approved
CE and RoHS approved
