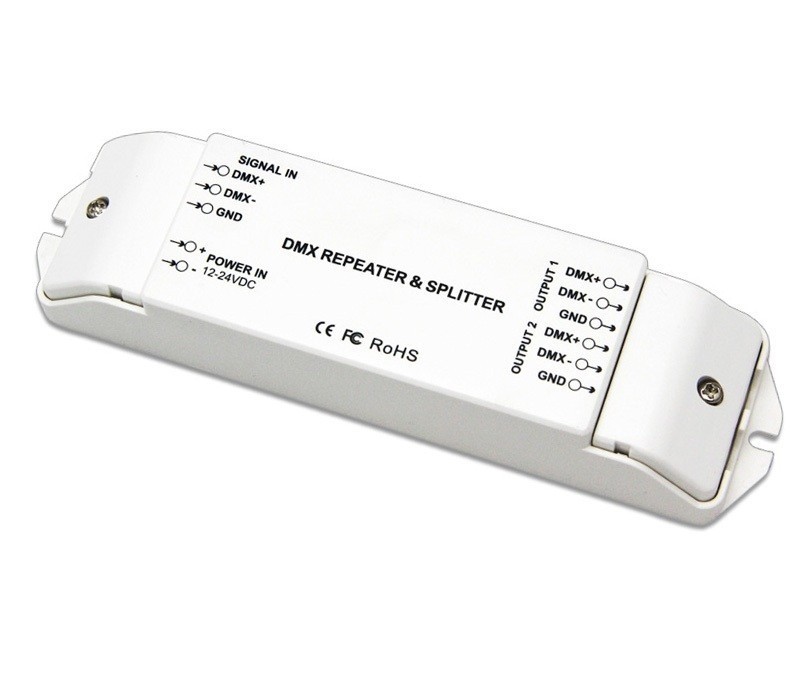

BC-812 Bincolor DMX Power Amplifier Splitter Repeater Led Controller

Be the first to review this product

Availability: In stock

€38.54
  • OR

    Quick Overview

    BC-812 Bincolor DMX Power Amplifier Splitter Repeater Led Controller

    BC-812 Bincolor DMX Power Amplifier Splitter Repeater Led Controller

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Feature function:

    Working voltage from DC12V-DC24V.

    Optical isolation between the input and output port.

    Input and output standard DMX512 signal.

    Amplify the DMX512/1990 signal and extend signal transmission distance.

    One input channel, two independent electrical isolation signal output channels.

    3000VDC; Isolation voltage 3000VDC.

    Wrong wiring protection at DMX input and output port.

    Product parameter:

    Mode: BC-812

    Input voltage: DC12V-24V

    Input signal:  DMX512/1990

    Output signal:  DMX512/1990

    Input/output channel:  One input channel,two output channels

    Input/output isolated voltage: 3000VDC

    DMX512 signal socket: Terminal block

    Product Dimension: L176XW46XH30(mm)

    Weight(G.W): 140g

    Package Content:

    1 Piece of BC-812 Bincolor Led Controller DMX Power Amplifier Splitter Repeater

    1 Piece of User's manual

    Bincolor_Controller_BC_812_1
    Bincolor_Controller_BC_812_2
    Bincolor_Controller_BC_812_3
    Bincolor_Controller_BC_812_4
    Bincolor_Controller_BC_812_5
    Bincolor_Controller_BC_812_6
    Bincolor_Controller_BC_812_7
    Bincolor_Controller_BC_812_8
    Bincolor_Controller_BC_812_9

    • CE and RoHS approved
