Feature function:
Adapts 2.4 G global open ISM frequency, license free, high efficient GFSK modulation.
Adapts to the international standard DMX512 protocol.
One emitter configurate several receiver, as long as the receiver and emitter set the same frequency.
Total of 126 channels, it can be used in the same place individually of 126 groups of wireless network and none mutual interference.
There are 4 levels of the transmitted power. At the max transmitted power(20dBm), Visual communication distance is upto 350 meters.
It has a self-test mode for the situation when the wireless link quality test or engineering installation debugging is needed.
If further distance is needed, it can be used as relay Setting, relay once or many times in order to achieve the required distance.
Multi-usage, can be set as a receiver or emitter, convenient to use.
Wrong wiring protection at signal input port.
Product parameter:

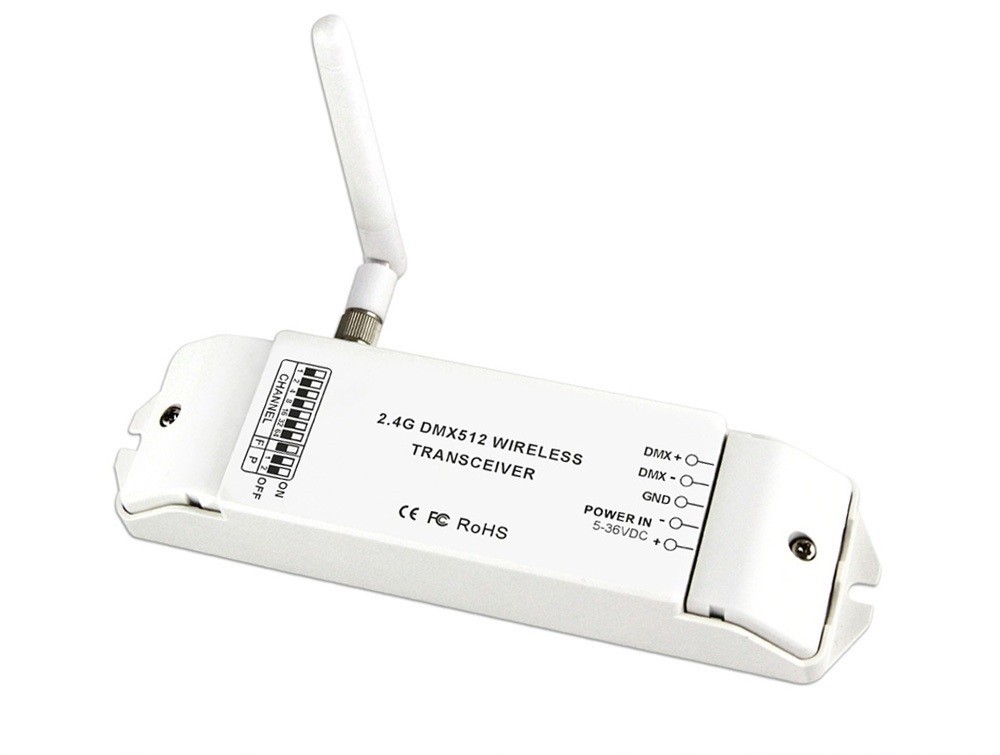

MODEL: BC-870 DMX512 wireless transceiver
Input Voltage: DC5V-DC36V
Transmission Signal: DMX512
Operating Frequency :2.4GHZ ISM 126 scale frequency
Transmitting Power: 20dBm
Receive Sensitivity: -96dBm
Distance: 350meters(depends on the weather and environment conditions)
Working Temperature: -20℃～55℃
Product Dimension: L176×W46×H30(mm)
Weight(G.W): 155g
Package Content:
1 Piece of BC-870 Bincolor Led Controller DMX512 Wireless Transceiver DMX Signal Transmitter
1 Piece of User's manual
CE and RoHS approved
CE and RoHS approved
