Welcome to use the Din Rail DMX512 to 0-10V converter, which adopted advanced micro-computer control technology to transfer DMX512/1990 signal to 0-10V signal or PWM 10V、5V signal. 1-5 output channels can be selected, and each channel can be controlled independently.
Specifications:

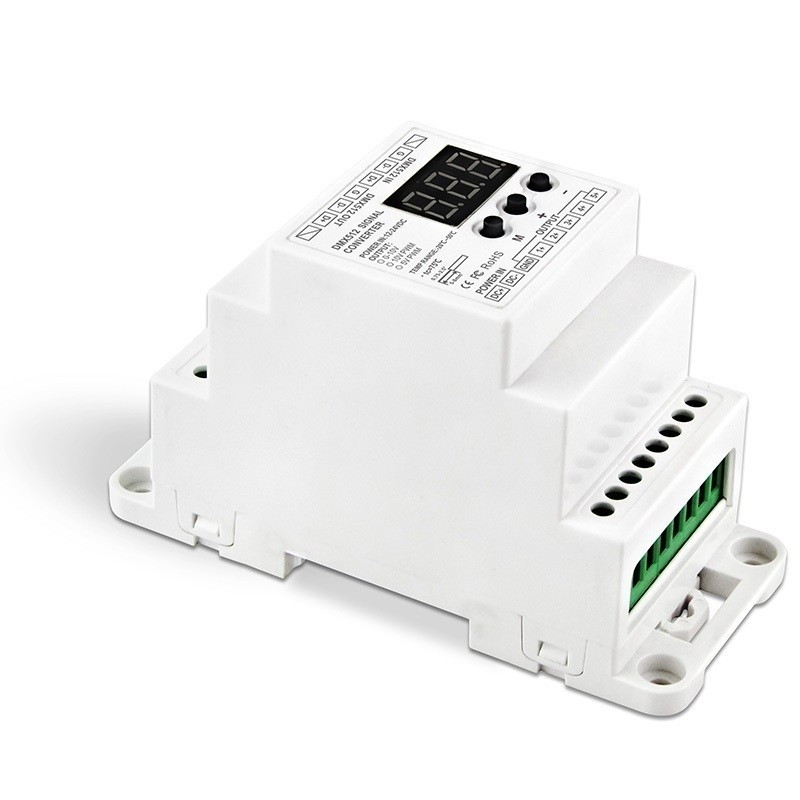

Model: DMX512 Signal Converter(BC-835-010V-DIN)
Input voltage: DC12V-DC24V
Input Signal: DMX512/1990
Output Signal: 5CH 0-10V signal
Max output power :5×20mA
DMX512 socket : Terminal Block
Dimension: L111×W46×H66(mm)
Weight (G.W) : 110g
Model:DMX512 Signal Converter(BC-835-PWM5V-DIN)
Input voltage:DC12V-DC24V
Input Signal:DMX512/1990
Output Signal:5CH PWM 5V signal
Max output power:5×40mA
DMX512 socket:Terminal Block
Dimension:L111×W46×H66(mm)
Weight (G.W) : 110g
Model:DMX512 Signal Converter(BC-835-PWM10V-DIN)
Input voltage:DC12V-DC24V
Input Signal:DMX512/1990
Output Signal:5CH PWM 10V signal
Max output power:5×40mA
DMX512 socket:Terminal Block
Dimension:L111×W46×H66(mm)
Weight (G.W):110g
Package Include:
1 Piece of BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail DMX512/1990 Converter
CE and RoHS approved
