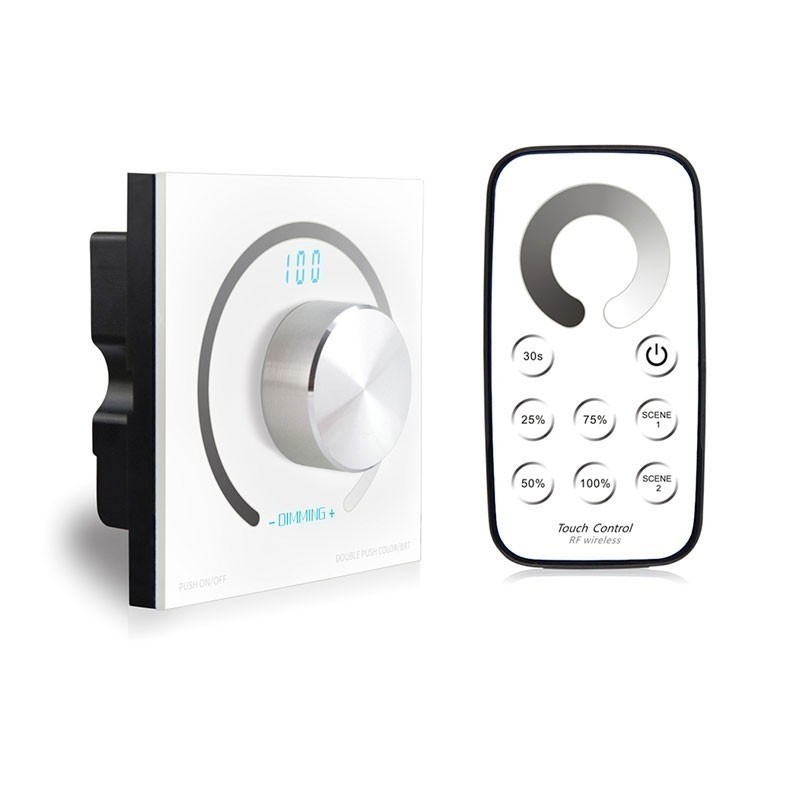

BC-K1-T1 Bincolor Led Controller Switch Knob Wall Single Color/CCT/RGB Rotary Dimmer

Be the first to review this product

Availability: In stock

€29.96
  • OR

    Quick Overview

    BC-K1-T1 Bincolor Led Controller Switch Knob Wall Single Color/CCT/RGB Rotary Dimmer

    BC-K1-T1 Bincolor Led Controller Switch Knob Wall Single Color/CCT/RGB Rotary Dimmer

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Feature function:

    Automatically adapt to LED light which works from DC12V-24V.

    Fashionable appearance, simple operation, standard 86 style socket, easy to install and disassemble.

    Workable for dimming, color temperature, RGB control.

    2048 grey scales per channel, led lamp is more rich and vivid without flash.

    Optional output frequency 0.5K、1K、2K、4K、8K.

    Three-digital-display indicates the current setting value, easy operation, the default parameter can be restored by manual.

    Can compatible with T series wireless remote control in long distance.

    Using Encoder rotary knob, instead of potentiometer, more durable.

    Product parameter:

    Model: K1(dimming) Rotary dimmer controller

    Input Voltage: DC12V-24V

    Load Current: 4A×3CH Max 12A

    Optional output frequency: 0.5K、1K、2K、4K、8K

    Grey Scale Level: 2048×3

    Dimming Range: 1%-100%

    Max Output Power: 144W(12V)/288W(24V)

    Working Temperature: -20°C~55°C

    Dimensions: L86×W86×H36(mm)

    Weight(N.W): 130g

    Model: Wireless Remote T1

    Working Voltage: 3V(CR2032)(not include)

    Working Frequency: 433.92MHz

    Remote Distance: 30m

    Working Temp: -20-55℃

    Dimensions: L106×W56×H9(mm)

    Weight(N.W.) : 40g Bincolor Led Controller Switch Knob Wall Single Color/CCT/RGB Rotary Dimmer


    Package Include:

    1 Piece of BC-K1-T1 Bincolor Led Controller Switch Knob Wall Single Color/CCT/RGB Rotary Dimmer
    Bincolor_Controller_BC_K1_T1_1
    Bincolor_Controller_BC_K1_T1_2
    Bincolor_Controller_BC_K1_T1_3
    Bincolor_Controller_BC_K1_T1_4
    Bincolor_Controller_BC_K1_T1_5
    Bincolor_Controller_BC_K1_T1_6
    Bincolor_Controller_BC_K1_T1_7
    Bincolor_Controller_BC_K1_T1_8

    CE and RoHS approved

    Additional Information

    Weight 0.3200
