Details
Basic Features:
With LCD display ,easy operation.
Built-in real time clock system ,and can set any time & any brightness.
Four-channel output, each channel can be configured and timing dim
independently.
1 manual mode, 4 timing mode, 12 change effect , perfectly simulate the light changes in nature.
Four kinds of change effect record function, you can use standard DMX512 console to program and record as a special effect mode.
Quick demonstration function, users can quickly check the accuracy of the data
4 channels output constant voltage or DMX512 signal.
Multiple DMX512 interface: XLR-3, RJ45, terminal block for convenient usage.
Specifications:
Model: BC-322-6A
Working Voltage: DC12-DC36V
Output Current :6A x 4CH
Input Signal: DMX512
DMX Interface: XLR-3,RJ45,Terminal Block
Working Temp: -20~55℃
Product Dimension: L161×W100×H30(mm)
Weight(G.W) :480g
Package Include:

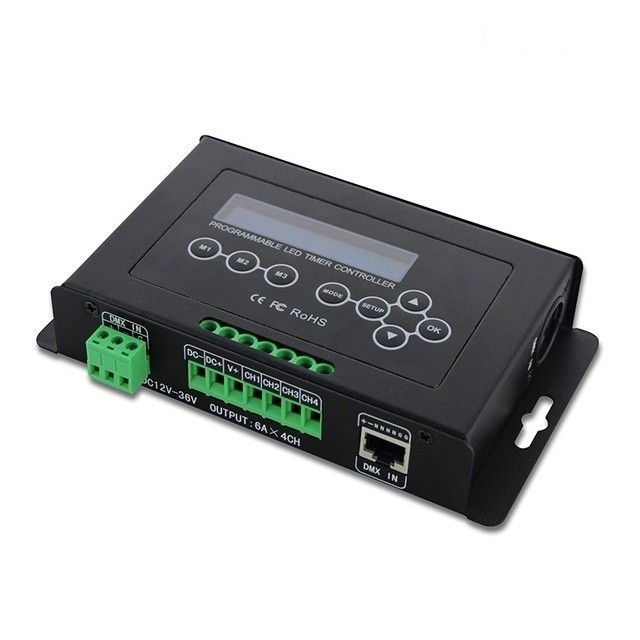

1 Piece of Bincolor BC-322-6A Programmable Timer Dimmer Aquarium Led Controller with LCD Display
CE and RoHS approved
Additional Information
Weight | 0.5000 |
---|
