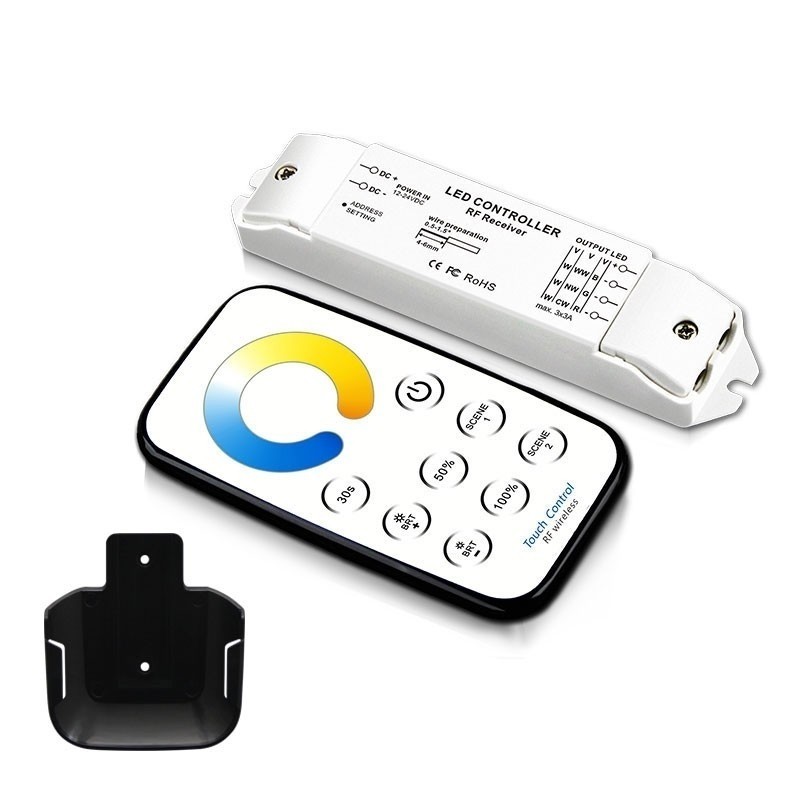

Bincolor T5-R3 Mini Wireless Remote NW WW Dimmer Receiver Set Led Controller

Be the first to review this product

Availability: In stock

€25.12
  • OR

    Quick Overview

    Bincolor T5-R3 Mini Wireless Remote NW WW Dimmer Receiver Set Led Controller

    Bincolor T5-R3 Mini Wireless Remote NW WW Dimmer Receiver Set Led Controller

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Feature function:

    Automatically adapt to LED light which works from DC12V-24V.

    The receiver volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control.

    Using RF remote control , the wireless signal is with strong penetrating power, no limited to direction or obstacles, and can control the multi function of ON/OFF, pause ,change mode , brightness and speed ,etc.

    10 strobe&fade change mode, with 4096 grey scales per channel, led lamp is more rich and vivid without flash.

    Model:Wireless Remote T5

    Working Voltage:3V(CR2032)(not include)

    Working Frequency:433.92MHz

    Remote Distance:40m-50m

    Working Temp:-20-55℃

    Dimensions:L106×W56×H9(mm)

    Weight(N.W.):40g

    Model :Receiver(R3)

    Compatible Remote:T1/T2/T3/T5

    Working Voltage:DC12V-DC24V

    Output Current:Max 3A×3CH

    Output Power:Max 108W(12V)/216W(24V)

    Working Temp:-30℃-55℃

    Dimensions:L135×W30×H20(mm)

    Weight(N.W.) :48g

    Package Include:

    1 Piece of Bincolor T5-R3 Mini Wireless Remote NW WW Dimmer Receiver Set Led Controller
    Bincolor_Controller_T5_R3_1
    Bincolor_Controller_T5_R3_2
    Bincolor_Controller_T5_R3_3
    Bincolor_Controller_T5_R3_4
    Bincolor_Controller_T5_R3_5
    Bincolor_Controller_T5_R3_6
    Bincolor_Controller_T5_R3_7
    Bincolor_Controller_T5_R3_8

    CE and RoHS approved
