D4 Skydance DMX LED Decoder 4CH*5A CV DC 5-24V

Be the first to review this product

Availability: In stock

€20.38
  • Buy 50 for €19.88 each and save 3%
  • Buy 100 for €19.38 each and save 5%
  • OR

    Quick Overview

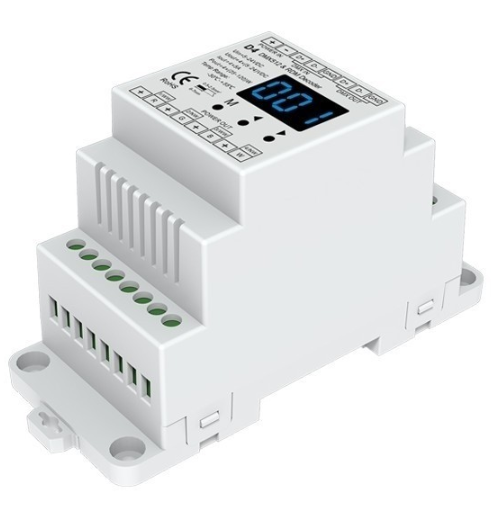

    D4 Skydance DMX LED Decoder 4CH*5A CV DC 5-24V

    D4 Skydance DMX LED Decoder 4CH*5A CV DC 5-24V

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Technical parameters

    1.Input voltage: 5-36VDC

    2.Input signal: DMX512

    3.Output type: PWM constant voltage

    4.Output current: 4CH,5A/CH

    5.Output power: 100-720W

    6.Decode number: 1/2/4 DMX Channel

    7.Dimming range: 0-100%

    8.Working temperature: -30℃~55℃

    9.Dimension: L115×W48×H67mm

    10.Weight: 110g

    Summary

    1.Din rail mounted DMX512 constant voltage decoder, four channel output, 4A per channel.

    2.With standard DMX512 compliant interface, DMX address can be set easily and shown on the digital numeric display.

    3.Compatial with our DMX masters such as T12,T13,T15,T16,T17, and any other high quality DMX master.

    4.It can also work as stand-alone RGB/RGBW controller, have 30 kinds dynamic mode,adjustable speed and brightness.

    5.It can also work as stand-alone 4 channel dimming controller, each channel adjust brightness independently,and save up to 8 groups brightness.

    6.Work with power repeater to expand output unlimitedly.

    Package Include:

    1 Piece of Skydance D4 4CH*5A CV DMX LED Decoder DC 5-24V

    1 Piece of User's Manual

    Skydance_Controller_D4_1Skydance_Controller_D4_2Skydance_Controller_D4_3Skydance_Controller_D4_4Skydance_Controller_D4_5Skydance_Controller_D4_6
    Skydance_Controller_D4_7

    CE and RoHS approved
