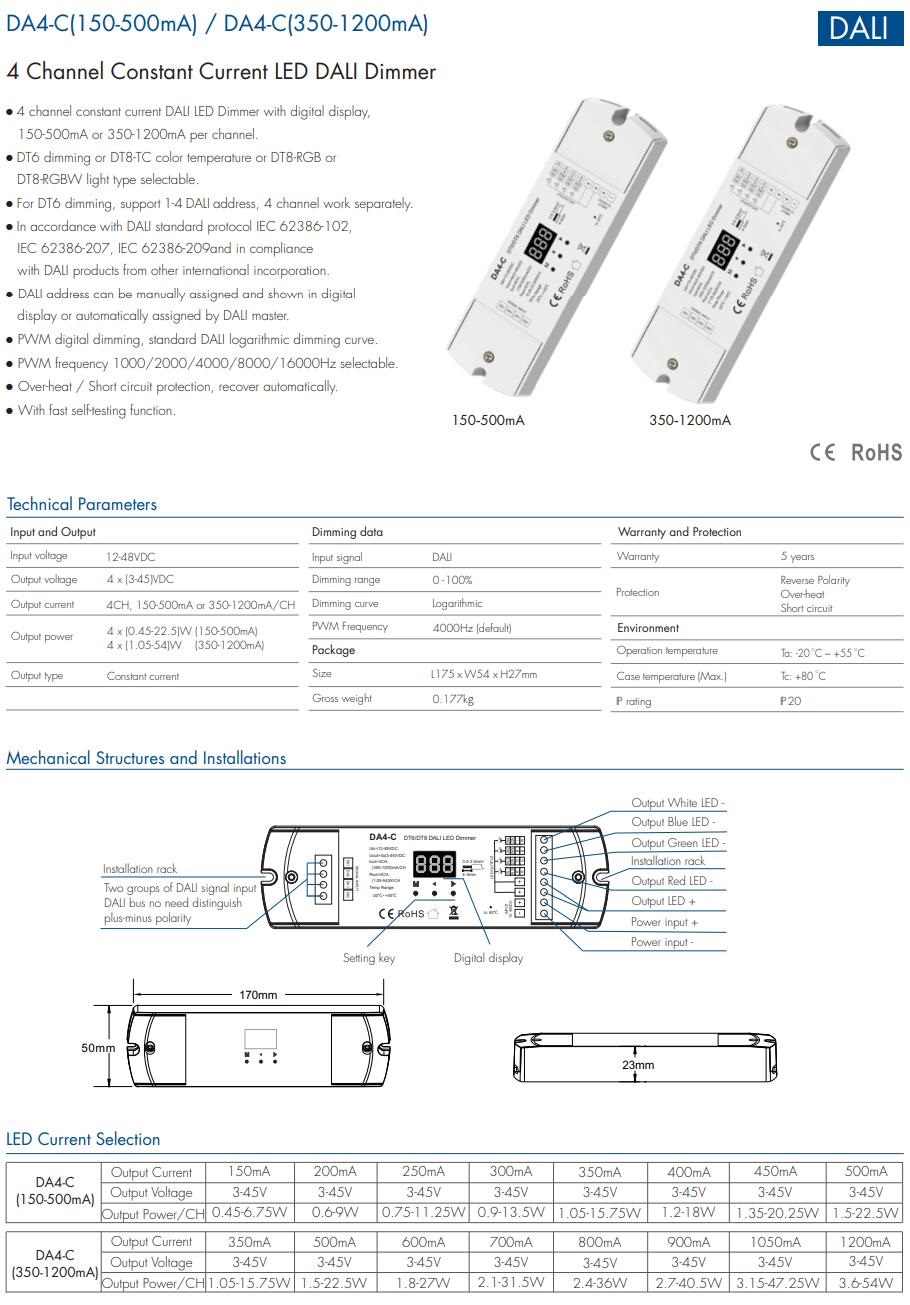

DA4-C 4 Channel CC Led DALI Dimmer Skydance Controller 12-48V DC
DA4-C(150-500mA) / DA4-C(350-1200mA)
4 channel constant current DALI LED Dimmer with digital display,
150-500mA or 350-1200mA per channel.
DT6 dimming or DT8-TC color temperature or DT8-RGB or
DT8-RGBW light type selectable.
For DT6 dimming, support 1-4 DALI address, 4 channel work separately.
In accordance with DALI standard protocol IEC 62386-102,
IEC 62386-207, IEC 62386-209and in compliance
with DALI products from other international incorporation.
DALI address can be manually assigned and shown in digital
display or automatically assigned by DALI master.
PWM digital dimming, standard DALI logarithmic dimming curve.

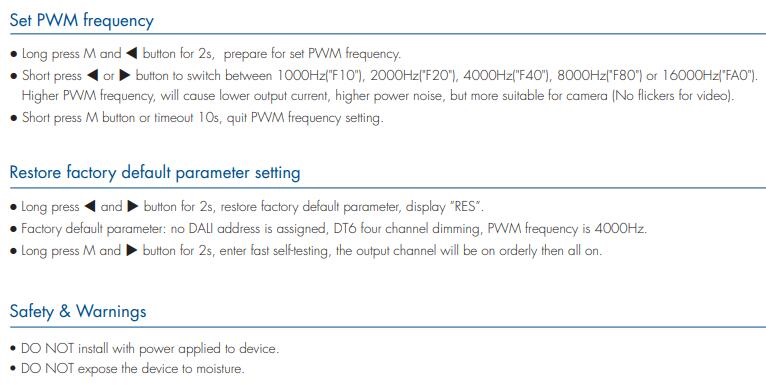

PWM frequency 1000/2000/4000/8000/16000Hz selectable.
Over-heat / Short circuit protection, recover automatically.
With fast self-testing function.
Package Include:
1 Piece of DA4-C 4 Channel CC Led DALI Dimmer Skydance Controller 12-48V DC
1 Piece of Product Manual
CE and RoHS approved
