Details

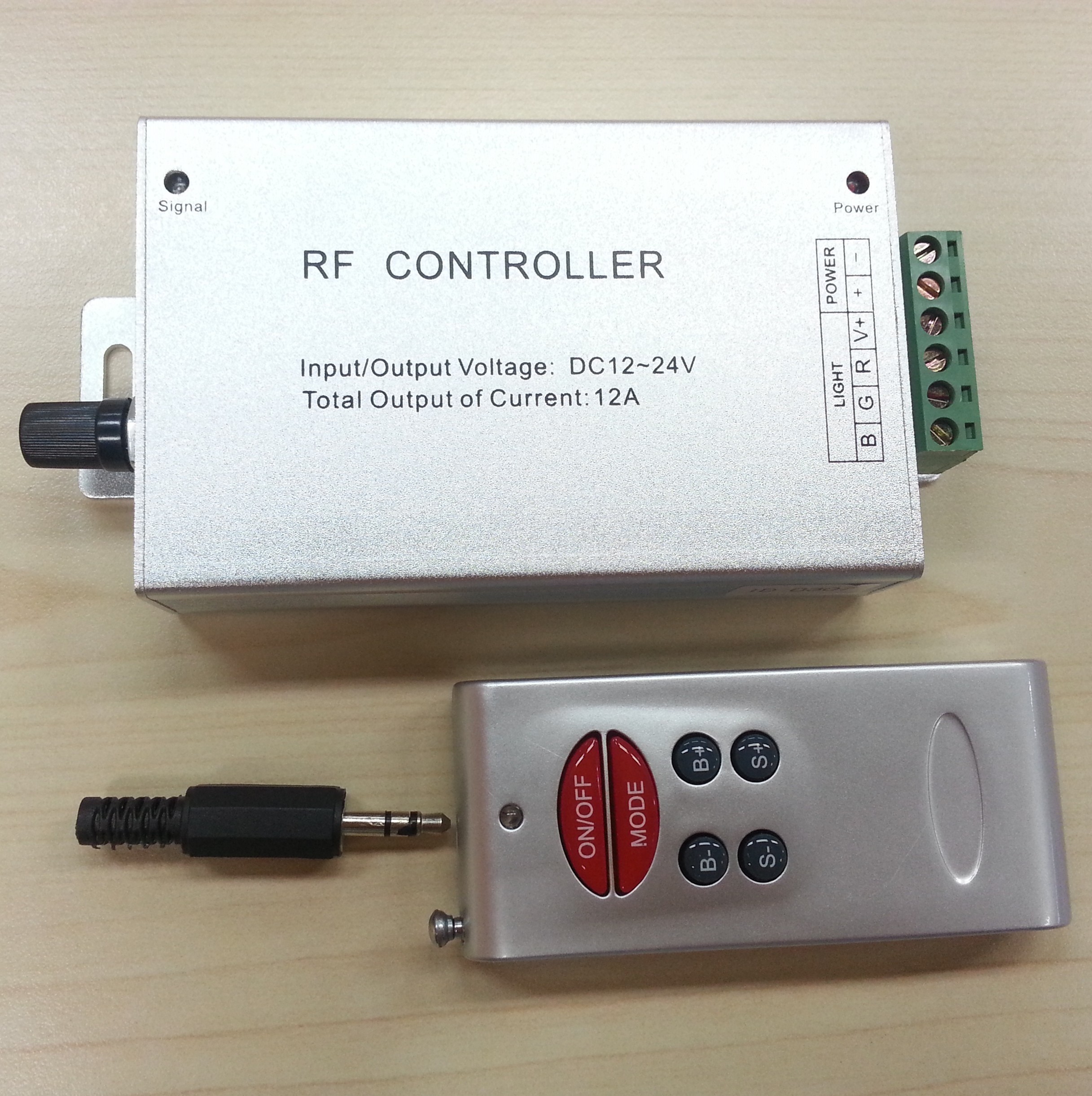

6 Button Remote RF Wireless Audio RGB LED Controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Specification:
Working temperature: -20~60 celsius
Supply voltage: DC 12V - 24V
Output: 3 channels
Connectiing mode: common anode
Transmission/Receiving frequency: 433Mhz
External dimension: L130*W64*H24 mm
Packing size: L145*W95*H50 mm
Net weight: 185g
Gross weight: 220g
Static power consumption: <1W
Output current: <4A (each channel)
Output power: 12V:<144W, 24V:<288W
Package Included:
1 Piece of Audio RGB LED Controller
1 Piece of RF Remote
1 Piece of User's Manual
CE and RoHS approved
Additional Information
Weight | 0.2200 |
---|
