Details
Controller
Working temperature: -20-60 ℃
Input voltage: DC5-24V
Output: 3 channel
Connection mode: common anode
External dimension: L175 * W53 * H27（mm）
Packing size: L180 * W58 * H58（mm）
Net weight: 300g
Gross weight: 350g
Output current: <5A (each channel)
Output power: 5V:<75W, 12V:<180W, 24V:<360W
Touch remote
Working temperature: -20-60℃
Power supply mode: AAA*3 battery
Supply voltage: 1.5V*3
Standby power consumption: 0.015mW
Standby current: 3uA
Emission current: 10mA
Remote distance: 15m
Standby time: 6 months

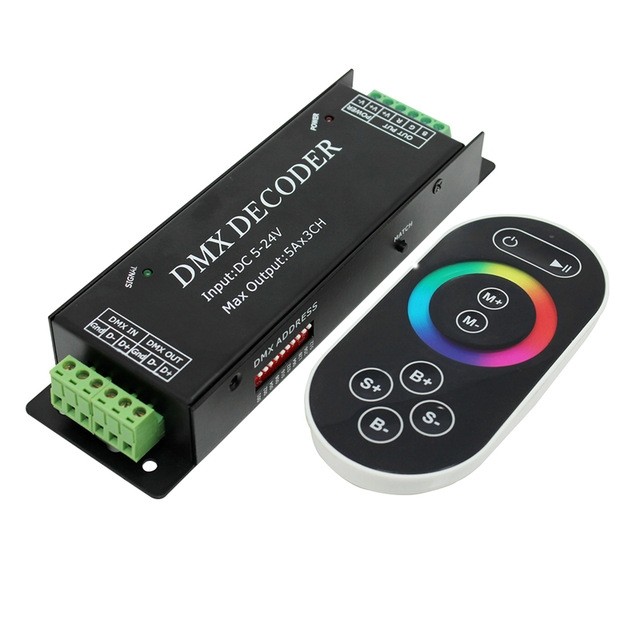

The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the and transformes it into PWM signal to drive LED; the port of DMX signal has lightning protection measures, while the load output has over-current protection circuit; You could connect the DMX decoder with DMX digital console to achieve dimming or various changes in procedures. Not connectied with DMX console, you can choose select the built-in 11 kinds of default patterns through the wireless remote control.
Package:
1 Piece of LED Controller
1 Piece of Touch Remote
1 Piece of User's manual
Controller
Working temperature: -20-60 ℃
Input voltage: DC5-24V
Output: 3 channel
Connection mode: common anode
External dimension: L175 * W53 * H27（mm）
Packing size: L180 * W58 * H58（mm）
Net weight: 300g
Gross weight: 350g
Output current: <5A (each channel)
Output power: 5V:<75W, 12V:<180W, 24V:<360W
Touch remote
Working temperature: -20-60℃
Power supply mode: AAA*3 battery
Supply voltage: 1.5V*3
Standby power consumption: 0.015mW
Standby current: 3uA
Emission current: 10mA
Remote distance: 15m
Standby time: 6 months
The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the and transformes it into PWM signal to drive LED; the port of DMX signal has lightning protection measures, while the load output has over-current protection circuit; You could connect the DMX decoder with DMX digital console to achieve dimming or various changes in procedures. Not connectied with DMX console, you can choose select the built-in 11 kinds of default patterns through the wireless remote control.
Package:
1 Piece of LED Controller
1 Piece of Touch Remote
1 Piece of User's manual
CE and RoHS approved
CE and RoHS approved
