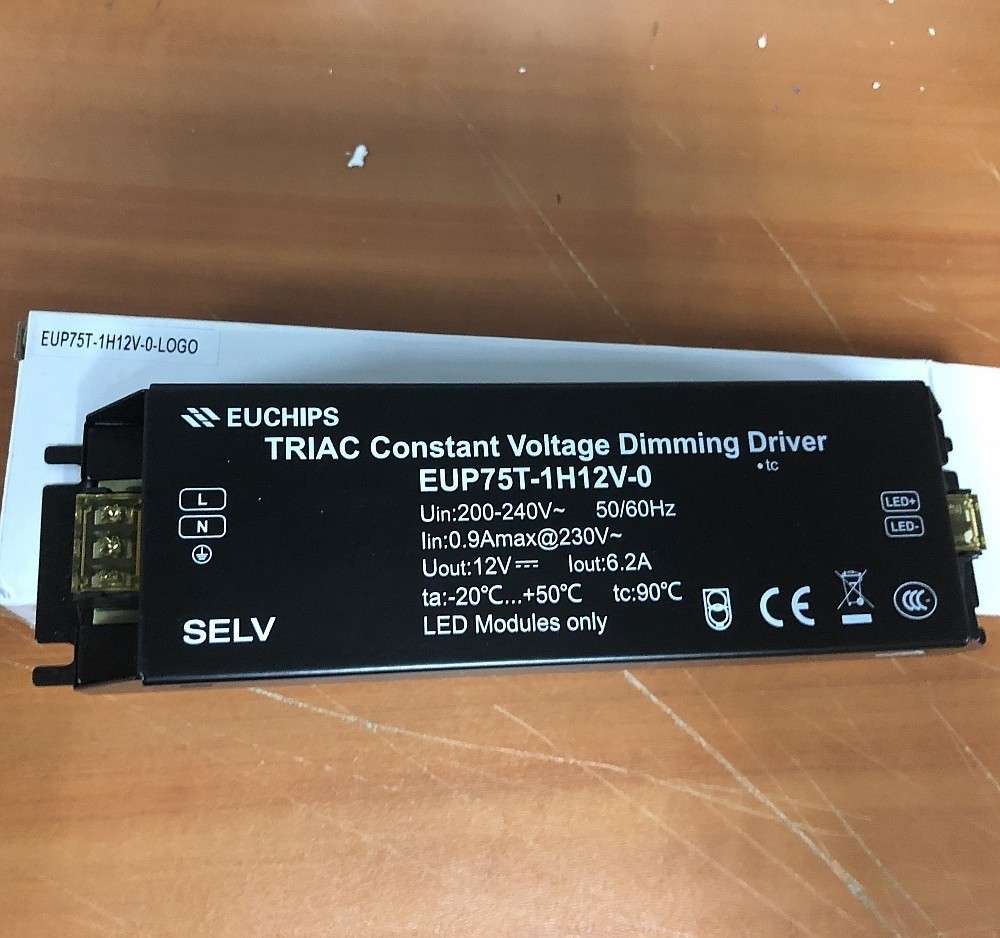

75W 12V DC Triac Constant Voltage Euchips Dimmable Driver EUP75T-1H12V-0
Product Description
75W 12VDC 6.2A*1ch CV Triac Driver
Item: EUP75T-1H12V-0
Input Voltage:220-240VAC
Output Voltage:12VDC
Output Power:75W
Dim Mode:Triac/ELV
Output Current:6.2A*1Channel
G.W.(g):460
Size(mm):213*54*33
Feature
Single-channel constant Voltage output, each channel 6.2A Max.
Support Leading edge (Triac) and Trailing edge (ELV) Dimmer
Dimming range from 40VAC to 240V AC
Dimming effect smooth, no flicker
High efficiency: up to 84%
High power factor of 0.95
Over current protection; Short circuit protection;Over voltage protection, over temperature protection
Suitable for indoor LED lighting application
Package Include:
1 Piece of 75W 12V DC Triac Constant Voltage Euchips Dimmable Driver EUP75T-1H12V-0
1 Piece of Product's Manual
- CE and RoHS approved
Additional Information
Weight | 0.3800 |
---|
