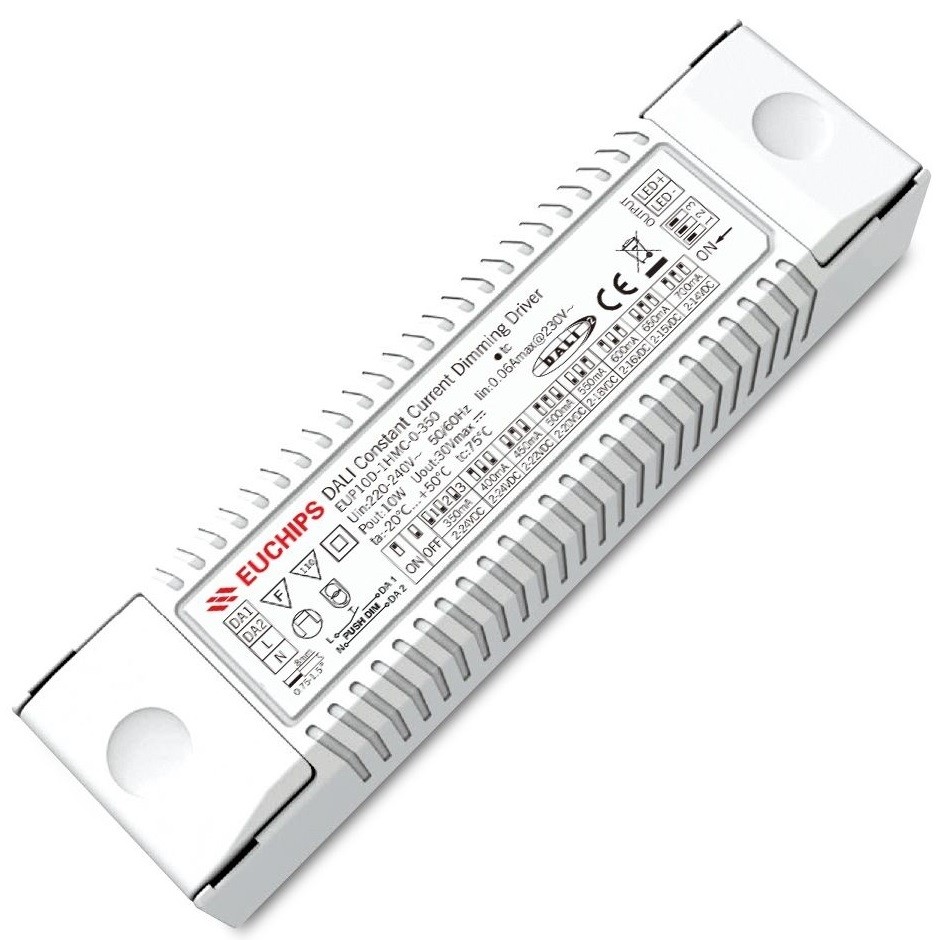

Euchips EUP10D-1HMC-0-350 10W DALI CC Led Driver 1ch 350-700mA
10W 350/400/450/500/550/600/650/700mA DALI-2 Constant Current LED Dimming Driver EUP10D-1HMC-0-350
EUP10D-1HMC-0-350 is a 10W AC/DC constant current mode output LED driver featuring the multiple levels
selectable by DIP switch and complies with DALI standard protocol IEC62386. EUP10D-1HMC-0-350 can be
connected to DALI main controller or Touch DIM(Push DIM) to achieve a smooth dimming effect.
Short Description:
Item No.:EUP10D-1HMC-0-350
Output Power:10W
Dim Mode:DALI
Product Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207
3. Support Touch DIM (Push DIM)function
4. High efficiency up to 80%
6. Built-in active PFC function
7. Dimming effect smooth, no flicker
8. Protections: Short circuit, over load, no load
9. Suitable for indoor LED lighting application, such as down light, spot light, and so on
Package Included:
1 Piece of Euchips EUP10D-1HMC-0-350 10W DALI CC Led Driver 1ch 350-700mA
1 Piece of User's Manual
CE and RoHS approved
Additional Information
| Weight | 0.1100 |
|---|
