Details

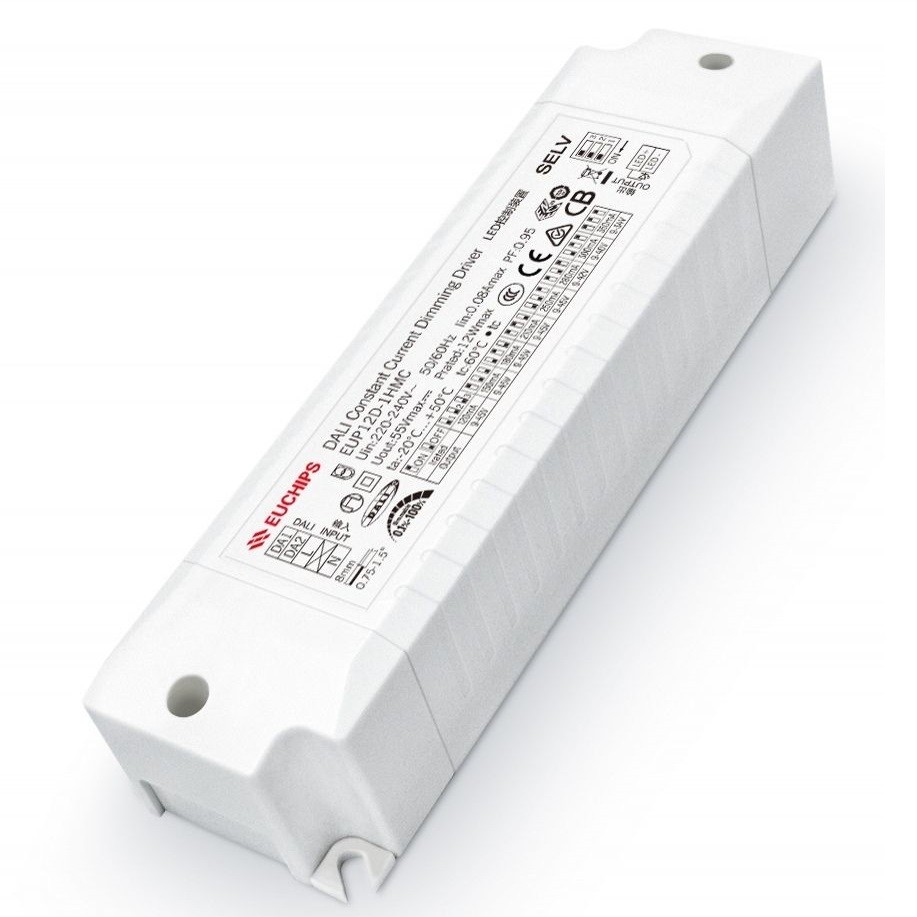

Euchips EUP12D-1HMC 12W DALI CC Led Driver 1ch 120-350mA
12W 120/150/180/210/250/280/300/350mA Constant Current DALI-2 Driver EUP12D-1HMC
EUP12D-1HMC is a 12W AC/DC constant current mode output LED driver featuring the multiple
levels selectable by DIP switch and complies with DALI standard protocol IEC 62386.
EUP12D-1HMC can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Short Description:
Item No.:EUP12D-1HMC
Input Voltage:220-240VAC
Output Current:120/150/180/210/250/280/300/350mA
Output Power:12W
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207 Ed2.0
3. Support Touch-DIM function
4. High efficiency up to 84 %
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over voltage
8. Suitable for indoor LED lighting application, such as down light, spot light, and so on
Package Included:
1 Piece of Euchips EUP12D-1HMC 12W DALI CC Led Driver 1ch 120-350mA
1 Piece of User's Manual
CE and RoHS approved
Additional Information
| Weight | 0.1500 |
|---|
