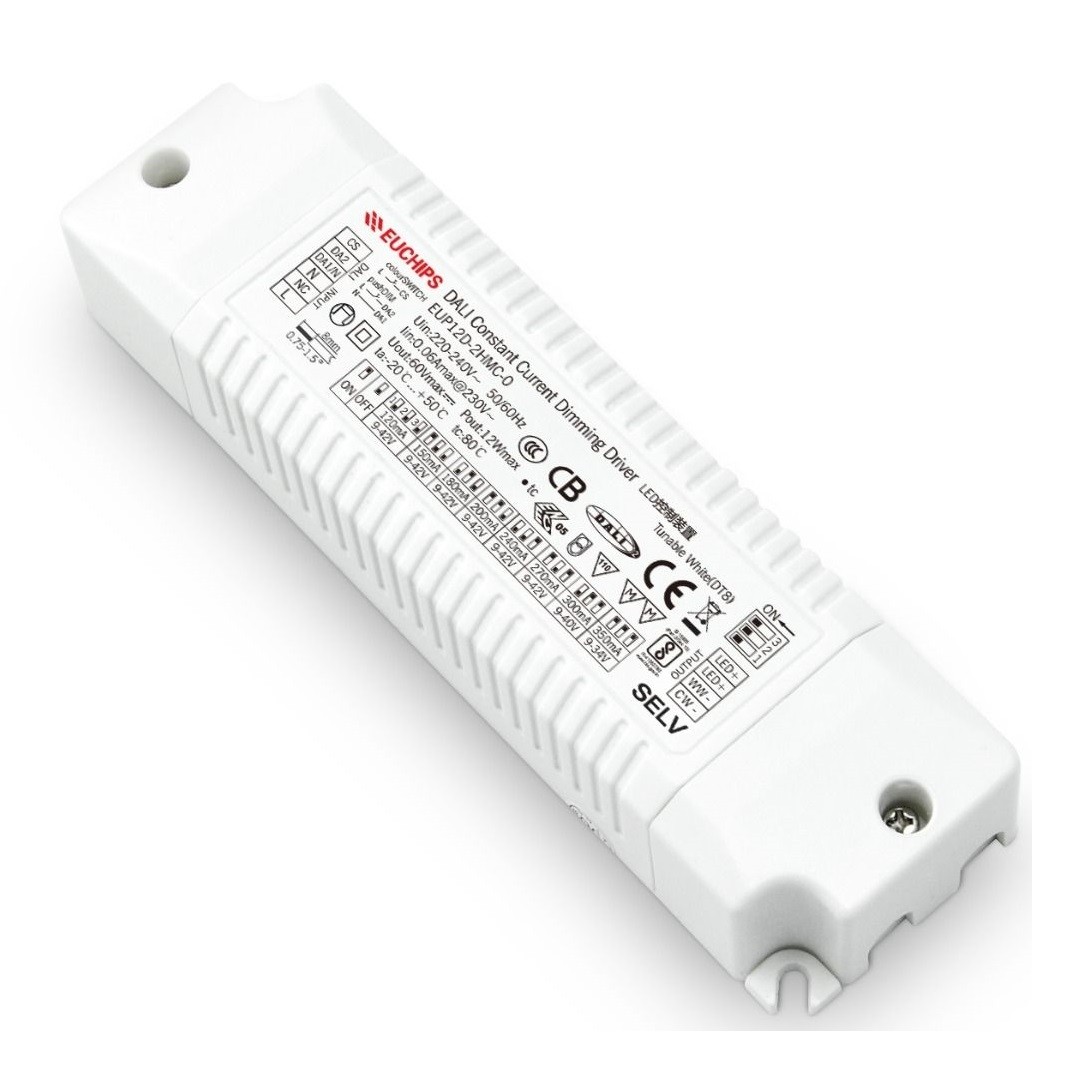

Euchips EUP12D-2HMC-0 12W DALI DT8 CC Led Driver 2ch 120-350mA
12W 120~350mA*2ch CC DALI-2 Driver DT8 EUP12D-2HMC-0
EUP12D-2HMC-0 is a 12W AC/DC constant current mode output LED driver featuring the multiple
levels selectable by DIP switch and complies with DALI standard protocol IEC 62386-209.
EUP12D-2HMC-0 can be connected to DALI main controller or Touch DIM to a chieve a smooth dimming effect
Short Description:
Item No.:EUP12D-2HMC-0
Input Voltage:220-240VAC
Output Power:12W
Dim Mode:DALI
Features
1. Two channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-209
3. Support Touch-DIM function
4. High efficiency up to 83 %
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over voltage
8. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Package Included:
1 Piece of Euchips EUP12D-2HMC-0 12W DALI DT8 CC Led Driver 2ch 120-350mA
1 Piece of User's Manual
CE and RoHS approved
Additional Information
| Weight | 0.1500 |
|---|
