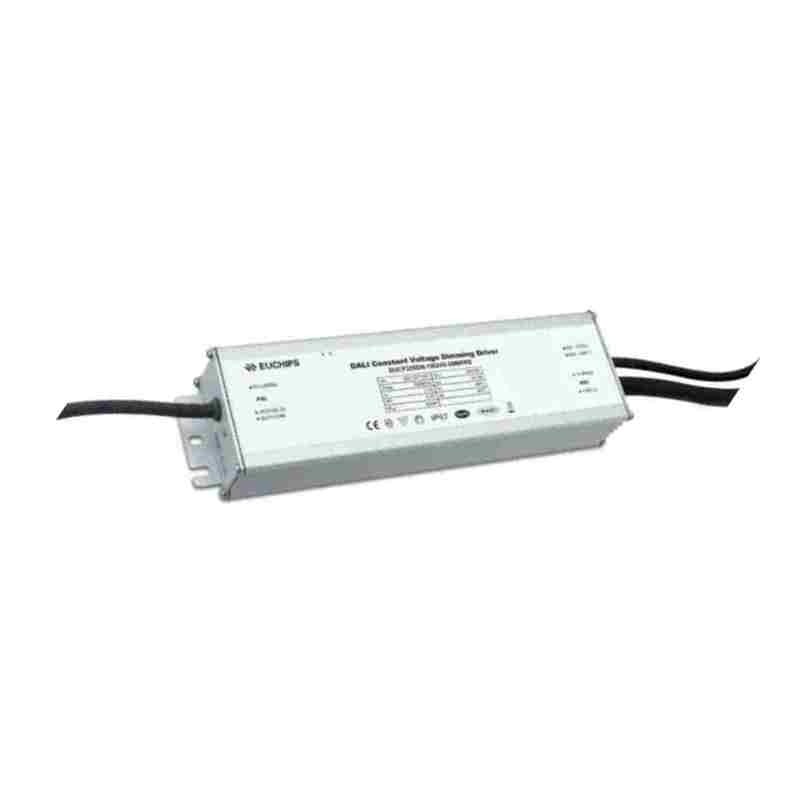

Euchips 320W EUCP320DN-1W24V-OMWWS Constant Voltage LED Driver
Summary
EUCP320DN-1W24V-OMWWS series are constant voltage mode output LED driver. The series
of products are suitable for outdoor because of IP67 and great surge immunity. The user can
select corresponding model according to the dimming method and market requirements.
Product Features
Supply voltage: 220-277V
Great surge immunity 10kV
PWM output frequency >1kHz
100,000Hour life @ Tc=75℃
7 year warranty @ Tc<=80℃
DALI (optional) dimmable
2% minimum dimming output
Dim off with 0.5W standby
12V 300mA auxiliary power to power controllers and fans (optional)
Input over voltage protection (optional)
CE/CCC,SELV output
Safety according to EN 61347-1, 61347-2-3,61347-2-13, 62384
Application :strip lights, landscape lights, bay lights, street lights, flood lights
Package Include:
1 Piece of Euchips 320W EUCP320DN-1W24V-OMWWS Constant Voltage LED Driver
Great Choice for Green Life, CE and RoHS Approved
Additional Information
| Weight | 1.6000 |
|---|
