Details

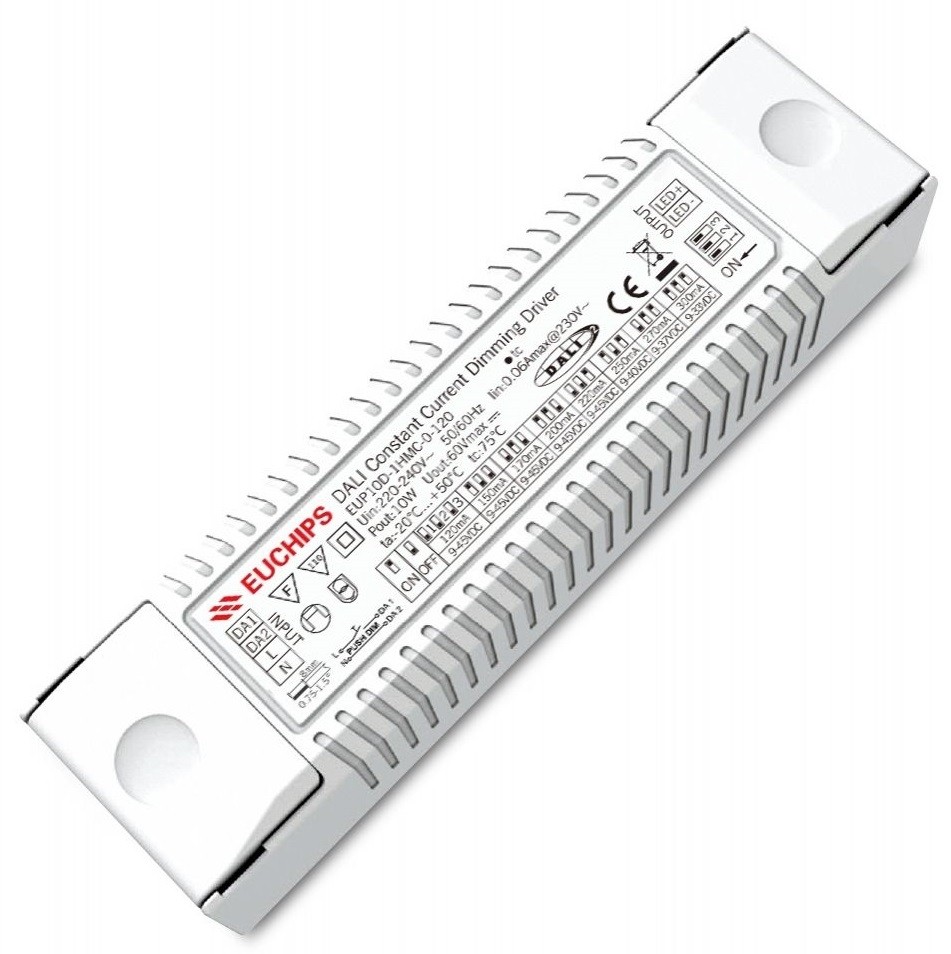

Euchips EUP10D-1HMC-0-120 10W DALI CC Led Driver 1CH 120-300mA
10W 120/150/170/200/220/250/270/300mA DALI-2 Constant Current LED Dimming Driver EUP10D-1HMC-0-120
EUP10D-1HMC-0-120 is a 10W AC/DC constant current mode output LED driver featuring the multiple
levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP10D-1HMC-0-120 can
be connected to DALI main controller or Touch DIM(Push DIM) to achieve a smooth dimming effect.
Short Description:
Item No.:EUP10D-1HMC-0-120
Output Power:10W
Dim Mode:DALI
Product Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207
3. Support Touch DIM (Push DIM)function
4. High efficiency up to 82%
6. Built-in active PFC function
7. Dimming effect smooth, no flicker
8. Protections: Short circuit, over load, no load
9. Suitable for indoor LED lighting application, such as down light, spot light, and so on
Package Included:
1 Piece of Euchips EUP10D-1HMC-0-120 10W DALI CC Led Driver 1CH 120-300mA
1 Piece of User's Manual
CE and RoHS approved
Additional Information
| Weight | 0.1000 |
|---|
