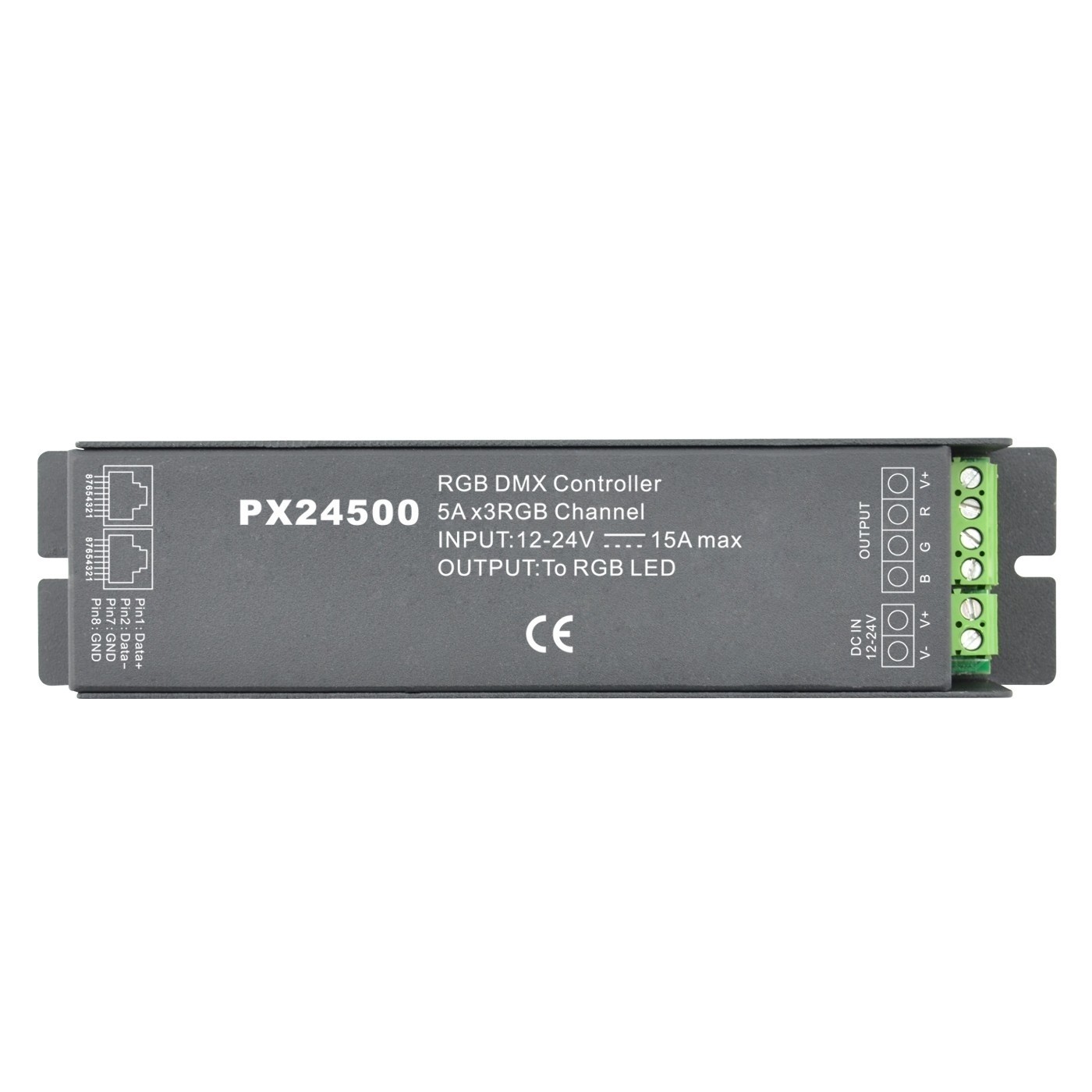

12V 24V DC RJ45 DIP Switch Constant Voltage Euchips LED DMX Decoder PX24500
SUMMARIZE
Thank you for using PX series DMX512 decoder.With advanced micro-computer control
technology,PX series convert the widely used DMX512/1990 signal to analog signal.Can choose 1~3 output channel,256-level brightness control.For connecting of light console and analog device,or lighting&building lamps controlling.
FEATHERS
Meets DMX512/1990
256-level brightness,full-color control
3 output CH.,can drive 5A(Each CH.)
With control system,can express perfect effect
Can drive 1~3 channel of each lamp
Can set the DMX addess freely
High interference resistant, over-heat and over-current protect, self-recovery function available
Can be custom-made
TECH. CHARACTERISTICS
Decode CH.： 1~3
Input Signal： DMX-512/1990 digital signal
Output Signal： 0~24V PWM signal,can drive 5A(Each CH.)
Power Supply： DC，+12~25V
Power Dis.： <1W
Power Output： <360W(24V);<180W(12V)
Operating Temp.： 0~70℃
Size： 175(mm)*41.5(mm)*33.5(mm)，can be custom-made
Packing size： 18(mm)*43(mm)*38(mm)
Net Weight： 242.5g
Gross weight： 255g
Package Include:
1 Piece of 12V 24V DC RJ45 DIP Switch Constant Voltage Euchips LED DMX Decoder PX24500
1 Piece of Product's Manual
CE and RoHS approved
