Details

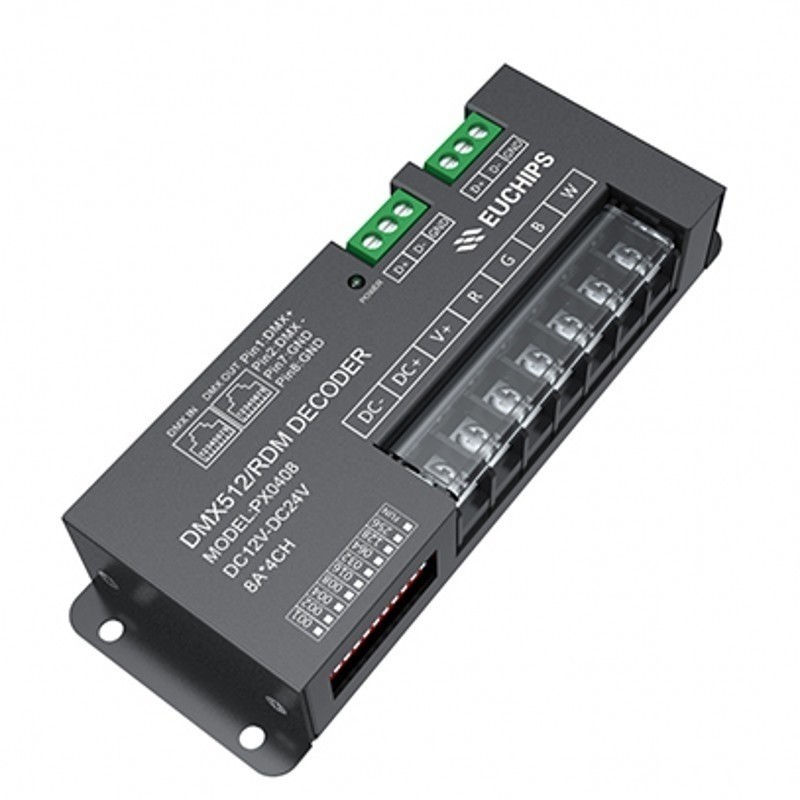

12V 24V DC 8A 4CH DMX512 RDM RGBW Euchips LED Decoder PX0408
Summary
Welcome to use PX series DMX512/RDM decoder & driver. PX series adopt the advanced micro-computer control technology and converted the DMX512,RDM/2009 digital signal widely used in international to the PWM control signal. 1~4 channels output for
option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light odulator. It is mainly used for the controlling of buildings & lights applied LED.
Product Features
Meets DMX512/1990,RDM /2009 protocol
Supported RDM parameters:
DISC_UNIQUE_BRANCH
DISC_MUTE
DISC_UN_MUTE
DEVICE_INFO
SOFTWARE_VERSION_LABEL
DMX512/RDM_START_ADDRESS
IDENTIFY_DEVICE
MANUFACTURER_LABEL
SUPPORTED_PARAMETERS
In DMX mode set the DMX address manually by switch; in RDM
mode, the host computer address allocation
Constant voltage output, the maximum current of 8A /ch for
RGBW decoder
256 grade brightness adjustment
Short-circuit protection,overload protection,over-temperature protection
Package Include:
1 Piece of PX0408 12v 24v 8A 4CH DMX512 RDM RGBW Euchips Controller Decoder
1 Piece of Product's Manual
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
Processing & Shipping & Tracking
Additional Information
| Weight | 0.2400 |
|---|
