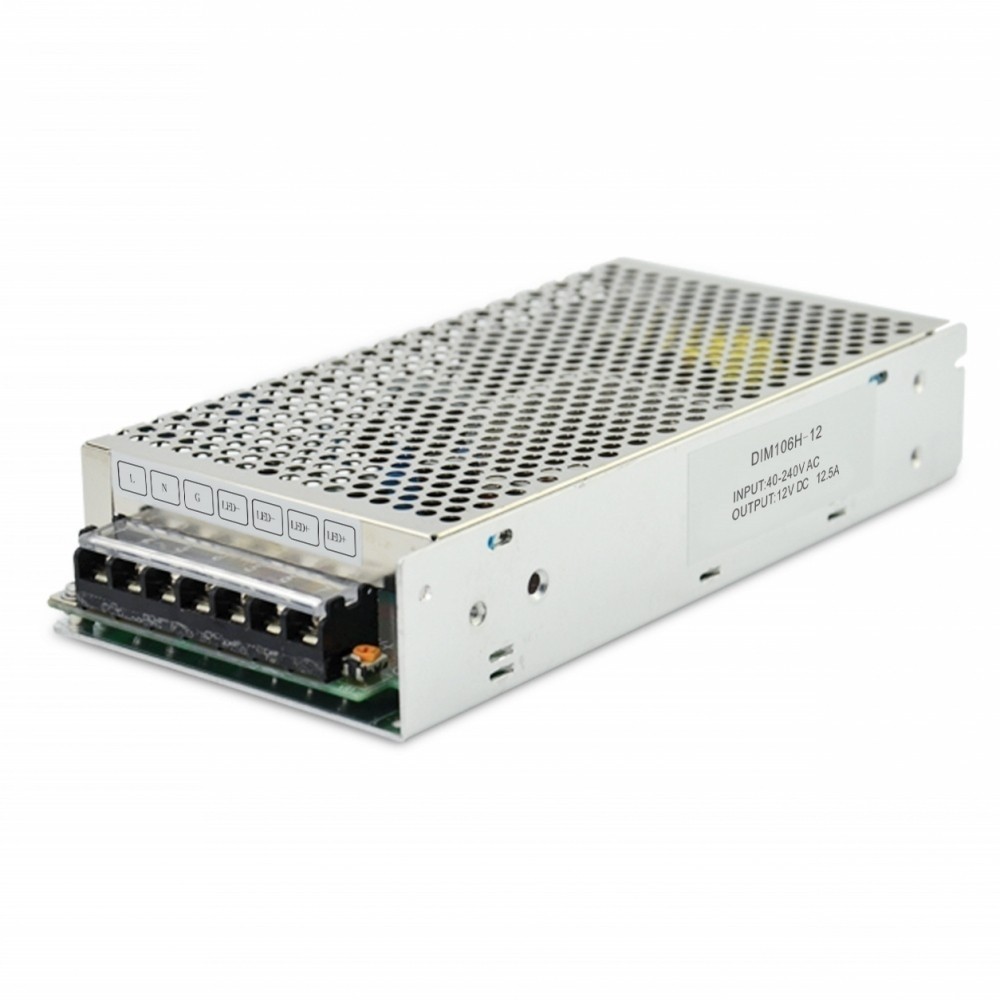

150W 12V DC Constant Voltage Euchips Triac Dimmable Driver DIM106H-12
Product Description
Item: DIM106H-12
Dimming Range: 40-240VAC
Output: 12VDC
Output Current: 12.5A*1Channel
Output Power:150W
Size:200*98*39mm
Features
Collect cut-phase signal by digital means, to ensure dimming consistency between individuals
Support Leading edge(Triac) and Trailing edge(ELV) Dimmer. To change input voltage via phase cut, in order to achieve perfect effect, please select dimmer properly
12VDC constant voltage output, max current 12.5A
Dimming range from 40V-240VAC; Dimming curve smooth
Protections: Short circuit / Overload
Has Power indicate LED
100% full load burn-in test
Package Include:
1 Piece of 150W 12V DC Constant Voltage Euchips Triac Dimmable Driver DIM106H-12
1 Piece of Product's Manual
CE and RoHS approved
Additional Information
| Weight | 0.6730 |
|---|
