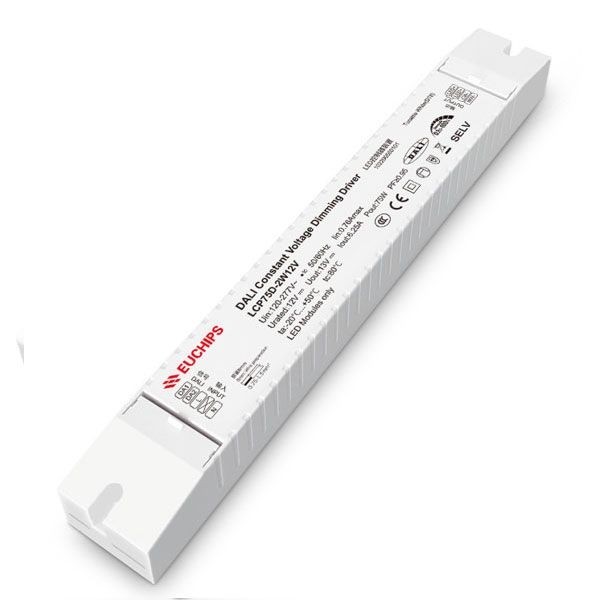

LCP75D-2W12V Euchips DT8 75W 12V DC 2ch DALI CV Led Driver
75W 12VDC 6.25A*2ch Constant Voltage DALI Driver LCP75D-2W12V
LCP75D-2W12V is a constant voltage mode output LED driver. It supports
DALI standard protocol and adjustment
of brightness and colour temperature.
Short Description:
Item No.:LCP75D-2W12V
Output Power:75W
Feature
1. 2 channels of constant voltage output, each carrying 6.25A ; separately ;
When carrying multiple loads, the cumulative load shall not exceed 6.25A
2. Meet DALI Protocol IEC62386 DT8
3. High input voltage of 120VAC ~ 277VAC
4. Dimming effect smooth, no flicker
5. Over load protection; over voltage protection; short circuit protection
6. IP20, suitable for indoor LED lighting application
Package Included:
1 Piece of LCP75D-2W12V Euchips DT8 75W 12V DC 2ch DALI CV Led Driver
1 Piece of User's Manual
CE and RoHS approved
Additional Information
| Weight | 0.3600 |
|---|
