Details
Parameters:
Input Voltage:.............DC 5V;
Power: .......................60leds/m----18watt/meter

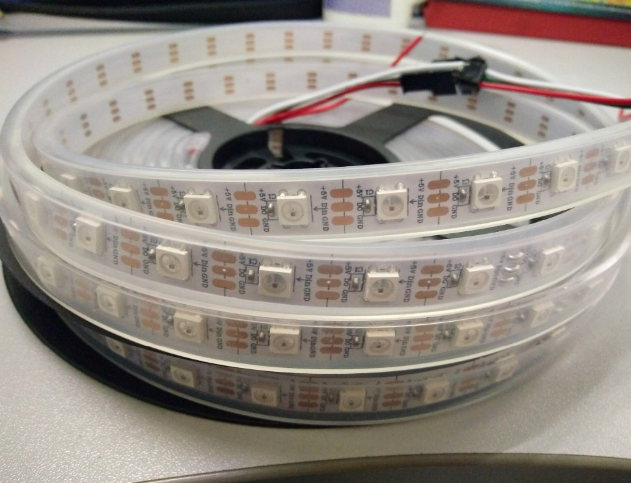

LED Resource:WS2812 led(5050 SMD RGB LED with built-in improved version of ws2812 ic)
LED: each LED is separately controlled IC
Type:Improved version ws2812 IC(built inside the 5050 smd rgb led)
Of IC: 1 IC Drives 1 led chip
Pitch:16.6mm(1000/64);
Grey scale:256;Bits/color:8-bits/color;
FPC size: Width: 10mm, High: 2.5mm;
Colors:Full color RGB, dream color changing;
Lighting angle: 120degree
Life time: 50,000hours
Warranty: 2years
Working mode: External controller
Connection: VCC: RED; GND:BLACK; DAT:BLUE
Strip can be cut one by one led chip.
Specification
Voltage: 5V
Number of lights:60leds/M
PCB color : White PCB/Black PCB,Pls Choose,
Protection Rate: Pls Choose,
IP30: Non- waterproof
IP65:Waterproof in Slicon coating
IP67: Waterproof in SiliconTube
Package Content:
1 Roll of LED Light Strip
CE and RoHS Approved
CE and RoHS Approved
Additional Information
| Weight | 0.2500 |
|---|
