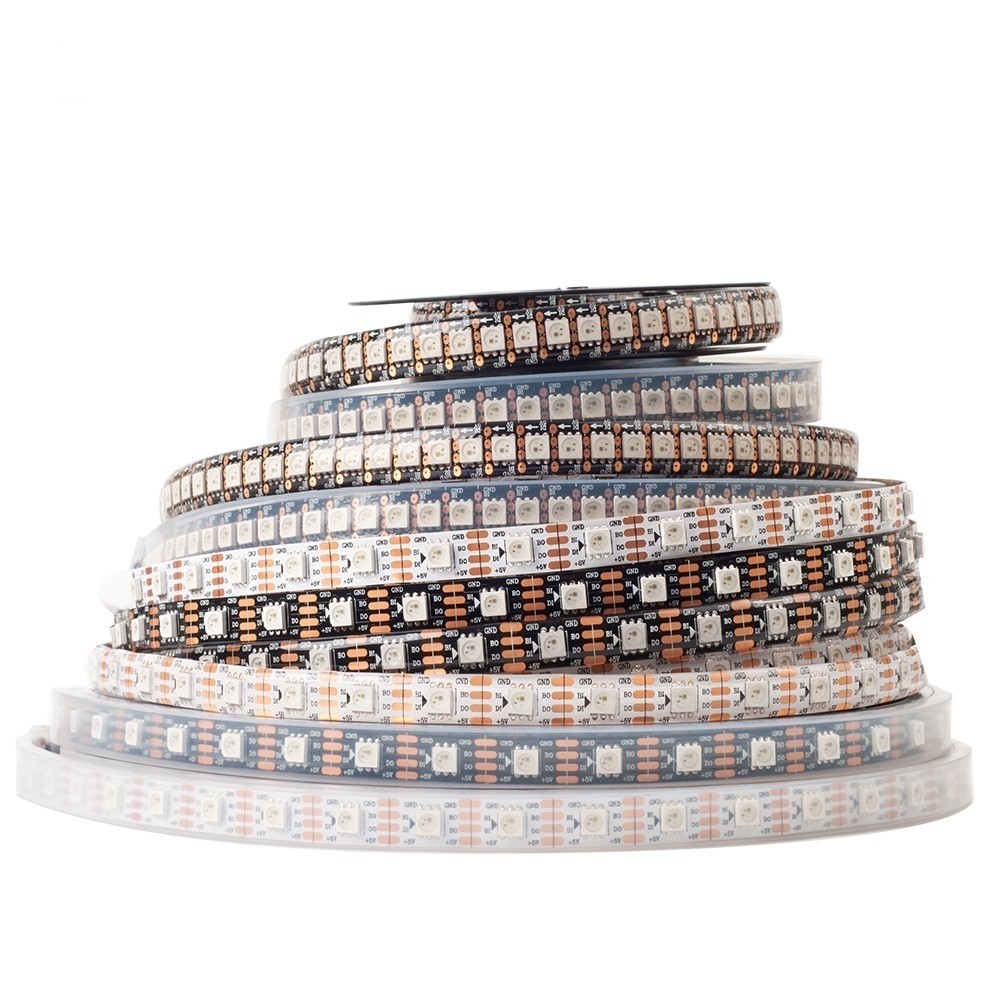

WS2813 LED Pixel Strip Dual-Signal 144Leds/m 5V 1M Addressable Light

Be the first to review this product

Availability: In stock

€20.62
  • Buy 12 for €19.75 each and save 5%
  • Buy 100 for €18.77 each and save 9%

Quick Overview

WS2813 LED Pixel Strip Dual-Signal 144Leds/m 5V 1M Addressable Light

* Required Fields

€20.62
  • WS2813 LED Pixel Strip Dual-Signal 144Leds/m 5V 1M Addressable Light

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Input voltage:.............DC5v;

    Power .......................144leds/m----43.2watt/meter

    LED resource:.............WS2813 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)

    LED: ...............each LED is separately controlled

    IC Type: .....................improved version ws2813 IC(built inside the 5050 smd rgb led)

    of IC: ..................(1 IC drives 1 led chip);

    Pixels:.........                 144/meter;

    Pitch: .........................16.6mm(1000/64);

    Grey scale: ................256;

    Bits/color: ...................8-bits/color;

    FPC Width:  .......................144leds/m----12mm

    FPC color: .........Pls Choose, BLACK PCB or White PCB

    Colors: ........................Full color RGB, dream color changing;

    Cuttable:......................every LED is cuttable;

    Protection Rate:  Pls Choose,

    Non-Waterproof with 3M Tape on the back,

    IP65 Waterproof Dripping Glue with 3M Tape on the back,

    IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back

    working temperature...............-40 ~ 70 °C

    Storage temperature...............-50 ~ 80 °C

    Source life...............50,000 hours

    Connector...............4PIN connector terminal pair

    (Red: 5V power , green: Date line,  Blue: standby date line,Black: GND)

    Package Included:

    1 Roll of LED Strip Light

    LIGHTING_LED_Pixels_Strip_WS2813_5V_1LIGHTING_LED_Pixels_Strip_WS2813_5V_2LIGHTING_LED_Pixels_Strip_WS2813_5V_3LIGHTING_Strip_Light_jh_4LIGHTING_Strip_Light_jh_6LIGHTING_Strip_Light_jh_7

    CE and RoHS approved

    Additional Information

    Weight 0.1000
