Details
Features:
GS8208 chip built-in 7805, it can withstand the input voltage 9V-15V, operating voltage 12V.
Provide output channel current misalignment that can reduce electromagnetic interference and power clutter.
When there is no signal input, the GS8208 will display the built-in program with 32 long patterns for application without controller.
the chip has power-on protection and power-down protection features to enhance the life of the chip.
GS8208 provides SOP8 package type, working environment is between -40 °C to +85 °C.
Breakpoint continuous transmission function, single point chip damage or capacitor short circuit does not affect data transmission
Every each LED individually and you could set them to any color or animation you want.
It comes with self-adhesive 3M tape on its back, so you can fix it on any dry and flat surface without any screws and clips.
It comes with 4-pin JST SM connectors and separated power/ground wires on both ends, which makes it easy to hook up each other and wire up for power.
Specifications:
IC type :GS8208 IC
Gray level: 256
View angle: 120°
Input voltage: DC12V
Color: full color 24-bit
FPCB board color: White
Power: 9W/m 0.3W/LED 30LEDs/m 5M total 45W or 18W/m 0.3W/LED 60LEDs/m 5M total 90W
Recommended power supply：DC12V 7.5A (90W)
Standard Reel Length:16.4ft/roll
Model: GS8208 strip 5050rgb chips
Storage Temperature:-55-+150 °C
Operating Temperature:-40 ~ +85°C
Led Qty: Pls Choose
The distance between two LEDs：12mm
Length xWidthx Height：5000mmx12mmx2mm
Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm
FPC Color: Pls Choose, Black PCB or White PCB
Protection Rate: Pls Choose,
Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Package Included:

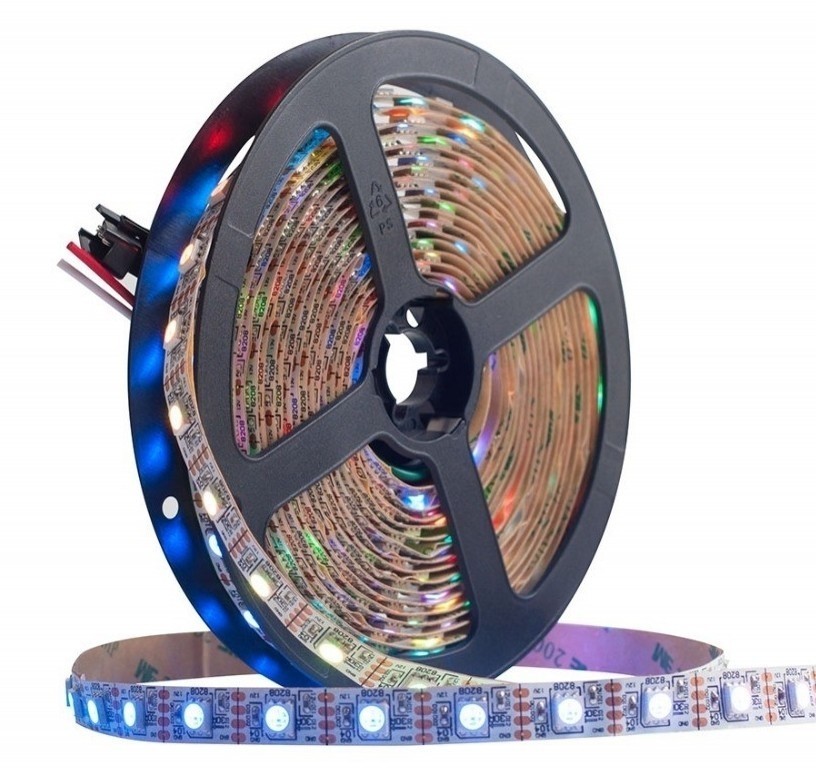

1 Roll of 5 Meters (16.4ft GS8208 WS2813 WS2812B RGB LED Strip 12V Dual-Signal Individually Addressable ) LED Strip Light
CE and RoHS approved
Additional Information
| Weight | 0.4100 |
|---|
