Mini R103 RGB LED Strip Amplifier Ultra Slim World's Smallest

Double click on above image to view full picture

More Views

Details

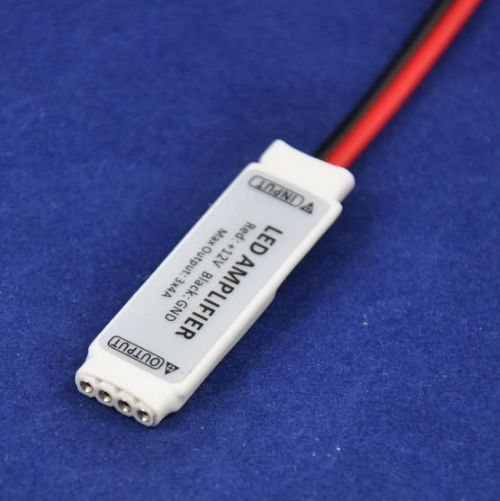

Ultra Slim World's Smallest Mini R103 RGB LED Strip Amplifier

R103 amplifier is a brand new RGB LED strip amplifier, it makes long LED strip implementation much more conveniently. The slim design make it easy to install together with strip or cables even in a very narrow space. Its output power is up to 144W and built with wrong wiring protection. R103 is your best choice in LED strip amplifiers.

World's smallest LED amplifier

Simple installation

Specified strip connector

High efficiency, low heat

Wide working voltage

Up to 144W power

Own embed control IC chip

Wrong wiring protection

Infinite cascading ability

Competitive price

Output power 144W

Working voltage DC 8-16V

Max output current 3x4A

Working temperature range -30℃~+75℃

Connector type specified strip connector

Dimension 42x13x3 (mm)

Gross weight 5.2g

Package Included:

1 Piece of Mini R103 RGB LED Strip Amplifier

ultra_slim_mini_R103_RGB_LED_strip_amplifier

1, Connect front strip rear plug to amplifier input. Arrows should be on same side.

2, Connect secondary strip head plug to amplifier output. Arrows should be on same side.

3, Connect red and black cable to 12V power supply. Red cable connect to positive and black cable connect to negative.

CE and RoHS approved
