Details

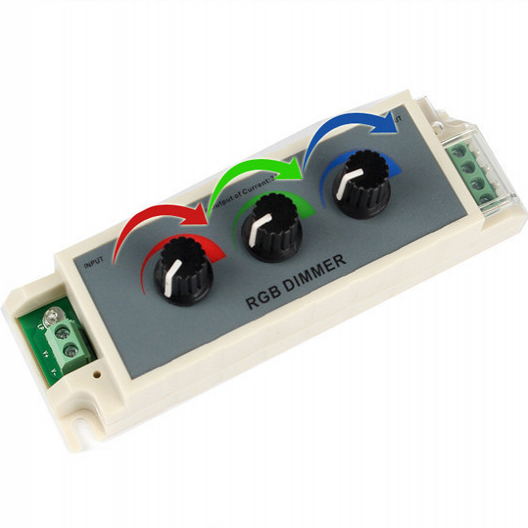

This 3 Channels RGB LED Dimmer PWM Controller is a controller that it can adjust brightness infinitely, there are three output channels in all. Its control mode is knob-operated control, you could adjust light to the appropriate brightness in accordance with your actual need.
Usage:
For RGB Led Strip or RGB LED Lights controlling and dimming each color independently
For solid color LED Strips with 3 independent channels
For Dynamic White LED strip, controlling color temperature.
Working temperature: -20~60 celsius
Power supply voltage: DC 12V to DC 24V
Output: 3 channels
External dimensions: approx L130*W40*H52 mm
Package size: approx L140*W50*H60 mm
Net weight: approx 95g
Static power consumption: <1W
Output current: <4A
Output power: 12V<144W, 24V<288W
Package Included:
1 Piece of RGB LED Dimmer
1 Piece of User's Manual
Direction for Use:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not
occur between connecting wire before you turn on the power.
2. Adopt rotary button,there are three load output channels,its function as follows:
Rotate button to the right,brightness will be brighter,when you rotate it to the far right,the
brightness is greatest.
Rotate button to the left,brightness will be darker,when you rotate it to the far left,the light will be
turned off.
CE and RoHS approved
