Details

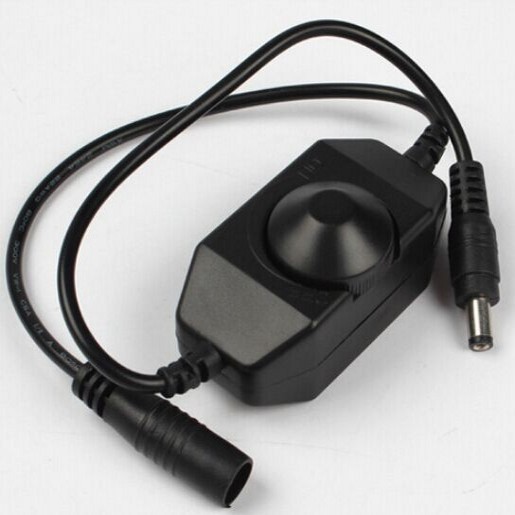

Dimmer is a controller that it can adjust brightness infinitely, there are one output channel in all. Its control mode is knob-operated control, you could adjust light to the appropriate brightness in accordance with your actual need.
Working temperature: -20~60 celsuis
Supply voltage: DC 12V-24V
Output: 1 channel
External dimension: L61*W33*H32 mm
Packing size: L105*W65*H40 mm
Net weight: 30g
Gross weight: 55g
Static power consumption: <1W
Output current: <2A
Power output: 24W for DC12V; 48W for DC24V
When installing, try to avoid minefields, strong magnetic fields and high-pressure region
Ensure a solid connection to avoid short circuiting to the components that could trigger fires
Install in a well-ventilated place to ensure appropriate environmental temperature
Please check the local voltage, power adapter is in line with product requirements, whether the definition of positive and negative power supply and product line
To prohibit the live wiring, check the wiring and short-circuit protection
Package included:
5 Pieces of Single Color Mini LED Dimmer Brightness Adjust Switch DC12-24V
CE and RoHS approved
Additional Information
Weight | 0.0500 |
---|
