Details
Specification:
Working voltage: DC 12~24V
Working temperature: -20~60 Celsius
Connection mode: common anode
External dimension:L86*W86*H36mm
Output: 2 channels
Static power consumption: <1W
Output current: <4A (each channel)
Output power: <96W (12V), <192W (24V)
Net weight:125g,
Gross weight:185g
Note:
Connect the load wire at first, following by the power wire; please ensure short circuit can not occur between connecting wire before you turn on the power;
Package Include:

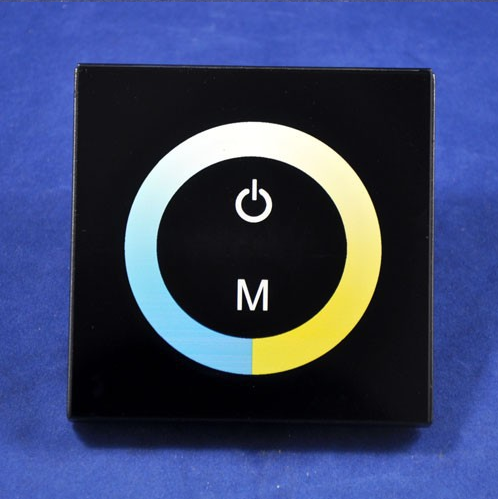

1 Piece of Touch Panel Controller
1 Piece of User's Manual
CE and RoHS approved
Additional Information
| Weight | 0.1900 |
|---|
