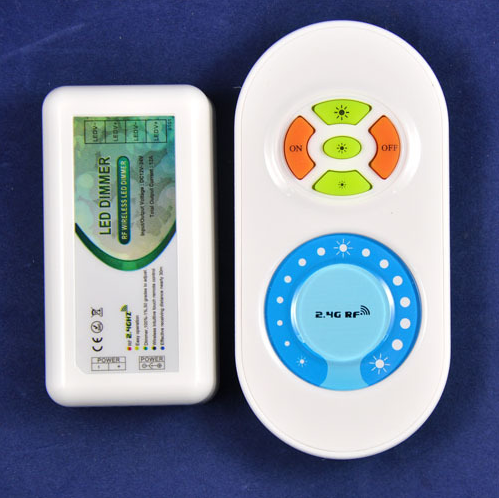

2.4G RF Wireless LED Dimmer Controller Touch Screen Remote Control

Availability: In stock

€11.55

Qty:

-OR- -OR-

Quick Overview

2.4G RF Wireless LED Dimmer Controller Touch Screen Remote Control

Double click on above image to view full picture

Specifications:

2.4G RF Remote Control

Power: AAA battery*2pcs

Material:ABS

Fabrication processing: Multicolor printing & UV varnish

Dimmer:

Size: 85*45*22mm

Working voltage: DC12-24V

Output control: 1 circuit

Control current: 6A/circuit

Receiving range: 30m

How to use:

Use your finger to touch the color ring, you can change the brightness from the highest to the lowest (100%-1% , 50 grades to adjust).

Resume function: The previous settings will be resumed while power on agian.

Matching code: Press Key 3 once within 3 seconds when power on again, the light will blink 3 times if matching is successfully.

Clearing code: Press Key 3 five times within 3 seconds when power on agian, the light will blink 6 times if clearing is successfully.

Caution:

Please don't touch or press the color ring while loading the batteries to protect the sensitiveness.

Please use the remote controller 3 seconds after the batteries are loaded.

Please reload the batteries when you find the color ring is not sensitive.

Package Included:

1 Piece of LED Receiver

1 Piece of 2.4G RF Remote

1 Piece of 3M Sticker

1 Piece of User Manual
