Details
Specification
Working Voltage: DC12V~24V
Output power: Max 18A
Volume control: 70dB
Remote battery: AAA *2 (battery is not included)
Remote standby power consumption: 0.08mW
Remote operating power consumption: 20mW

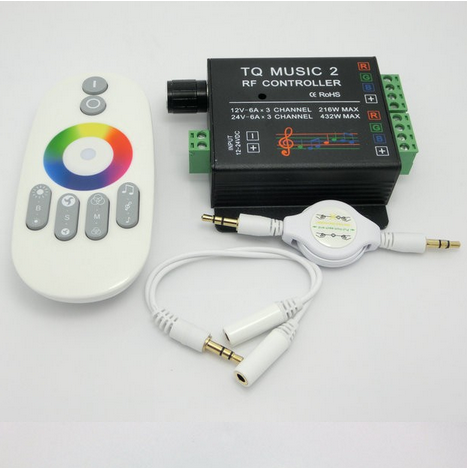

This TQ Music 2 RF Music / Audio 3-Channel RGB Controller DC12-24V would be controlled by radio-frequency capacitive touch, effective control distance up to 20 meters.
Used convenient at night with LED backlight
With 3.5MM audio, non-interfered music mode works better.
Color changing is more exquisite with PWM.
With Dual channel output, the maximum power is 432W
Easier to white mode with intelligent switch.
20 classic modes changing follow your heart.
15 music modes make every moment rhythmical
Available for all sorts of constant voltage RGB lamps, such as RGB strip\soft strip, RGB panel lights, RGB light modules etc.
Remote with special fixed seat, convenient for users
Application
Club, bar, corridor, room, hotel, museum, etc.; Plaza, commercial buildings, parks, scenic spot, evening location, etc
Install Caution:
-This product is non-waterproof, please avoid the sun and rain. If you install it outdoor, please use the waterproof box.
-Good heat dissipation can prolong the working life of LED controller, please install the product in a well-ventilated place.
-Please don't install or use these products in situations of thunder and lightning, high-intensity magnetic field or high-pressure.
-Please make sure that the output voltage of the LED power supply complies with the voltage range of the product.
-For safety, be sure that the operating current does NOT overload the wire capability.
-Before power on, make sure that ports are connected correctly. Wrong connection will damage the products.
Package included:
1 Piece of Music V2 LED Controller
1 Piece of RF Touch Remote
1 Piece of Remote Wall Holder
2 Pieces of connecting wires
1 Piece of User's Manual
CE and RoHS approved
Additional Information
Weight | 0.3400 |
---|
