Details
There is an upper computer in the programmable time controller to make the load output change over time, the customer may customize schedule mode they want through the upper PC. Then through the USB port to download required schedule to the controller.
The upper PC in addition to the function of editing schedule mode, it also can be setup time for the controller because of synchronous clock function of upper host. If user want to see the schedule mode effect after editing, they can use fast sowing function of upper.Because there is no delete function of the upper host, so the mode name display space will come into blank as long as you execute delete.
This controller can control load of led changing effect no more than five channels.And it can be used in the occasion of the plant lights, light box advertising, the stage, home decoration, etc.. It is widely used for lighting projects.
specification:
Operating temperature: -20 to 60 degree
Working voltage: DC12-24V
Output: 5 channels
Output: Five CMOS drain-open output
Control variant: common anode
Max load current: 4A each color, total is 20A for 5 channels
External dimension: 120MM*69MM*24MM
Package Included:

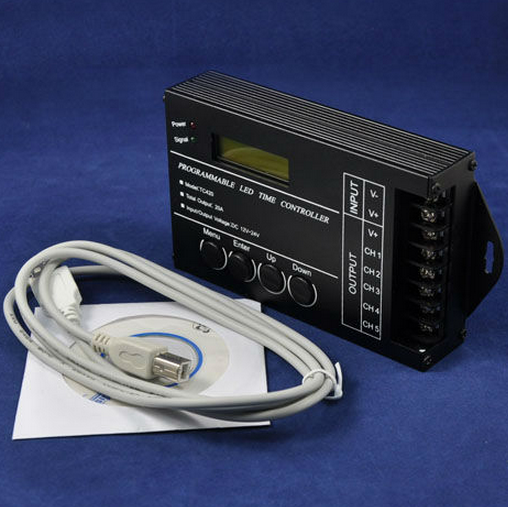

1 Piece of 5 Channel Programmable Time Controller
1 Piece of Disk
1 Piece of USB Data Line (approx 140cm-Cable)
1 Piece of User's Manual
CE and RoHS approved
Additional Information
| Weight | 0.3700 |
|---|
