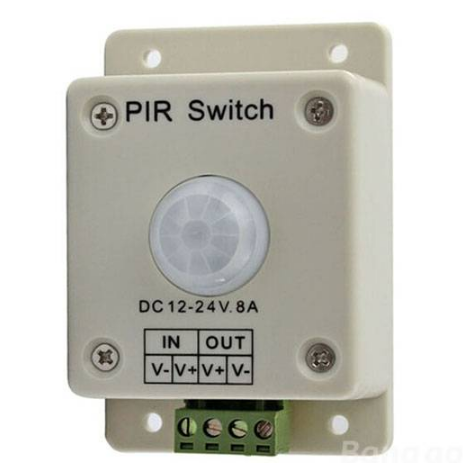

Details
Working Voltage: DC 12-24V
Maximum Load Current: < 8A
Maximum Output Power: 12V: <96W, 24V: < 192W
Static power consumption: <1W
Dimension(mm): 85*59*48(L x W x H)
Output: 1 channels
Weight:100g
Work Temperature: -20-60℃
Sensing distance: · 16.4~26.2feet/5 ~ 8 M (Approx.)
Ham should angle: 120 degrees
Default Delay Time: 10s (Approx.)
Features:
1.Easy to install and simple to use.
2.Convenient to let the light auto on/off.
3.Adjust the light soft and stable, no flickering.
4.Mainly use it to control LED light lamps and LED Strip.
5.The switch can detect human body's infrared and use infrared to control the load.
6.· Applied in incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp and other kinds of loads.
How to Use:
1.Connect the load wire first, followed by the power wire; Please ensure short circuit
can not occur between connecting wire before you turn on the power.
2.When it detects someone, the light turns on. When people leave after 10 seconds, the light turns off.
3.The controller signal output line and input line should be connected correctly.
CE and RoHS approved
