Details
Specification:
Working temperature: -20-60 degree
Working voltage: DC12-24V
Size: 86*86*26 mm
Gross weight: 100g
Output: 1 channel
Induction distance:5-8m
Induction Angle: 120 degree
Static power: : <1W
Output current : <8A
Output power: 12V< 96W, 24V<192 W
Direction for Use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur
between connecting wire before you turn on the power;
2. when the detected light up when the load was light, when people leave after 10 seconds, load lights
automatically turn off.
3. The controller signal output line and input line should be connected correctly.
Package Included:

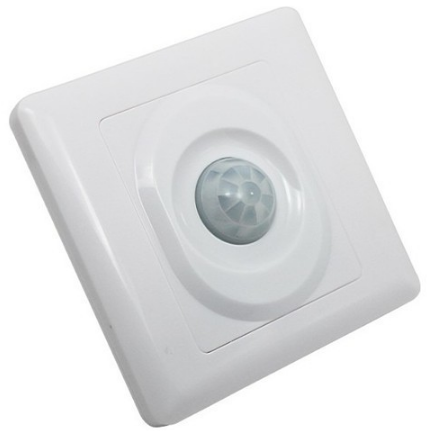

1 Piece of Wall Mounted LED Controller
1 Piece of User's Manual
CE and RoHS approved
Additional Information
Weight | 0.1000 |
---|
