Touch panel controller is our new research and development of new high-end controller, the glass panel design, appearance beautiful vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for controlling the LED lighting lamps and lanterns, for example: point light source, soft article light, wash wall lamp, glass curtain wall lamp, etc. Has the wiring convenient, use the advantages of simple; According to the actual needs of customers can realize jump to change, gradual change, flash lights change and frequency effect.
Shape color: black is default, white is available
Working voltage: DC 12~24V
Working temperature: -20~60 Celsius
Connection mode: common anode
Output: 3 channels
Static power consumption: <1W
Output current: <4A (each channel)
Output power: <144W (12V), <288W (24V)
Dimention: 86x86x36mm
Net weight: 128g

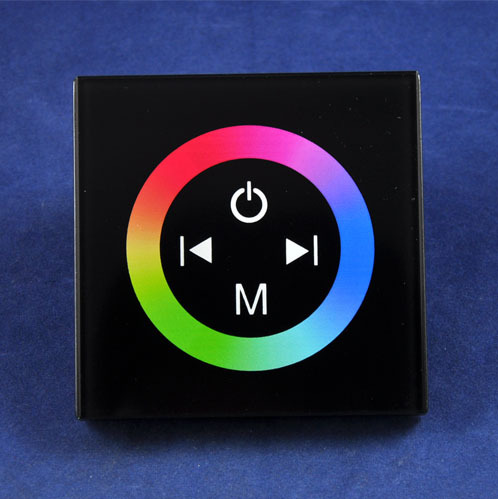

1 Piece Of TM08 Touch Panel Wall-Mounted Switch RGB LED Controller
CE and RoHS approved
