DC5V~24V SP108E Led Addressable Pixel Wifi Controller Smart Phone APP Control

Be the first to review this product

Availability: In stock

€10.47
  • Buy 50 for €9.85 each and save 6%
  • Buy 100 for €9.21 each and save 13%
  • OR

    Quick Overview

    DC5V~24V SP108E Led Addressable Pixel Wifi Controller Smart Phone APP Control

    DC5V~24V SP108E Led Addressable Pixel Wifi Controller Smart Phone APP Control

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Features:

    1 Long distance APP remote control via WIFI

    2 Support routing mode(AP) and LAN connection mode(STA)

    3 Support almost every kind of one-wire or two-wire LED driver IC

    4 Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns

    5 Creatively usingfrom-image-to-effect method for user toDIYany effect

    6 Support setting pixel number and segments number, able to control up to 2048pixels

    7 DC5V~24V widerangeworking voltage, preventing reverse connection of power supply

    8 User setting saving

    App control:

    Both IOS version and Android OS version are available. (hardware should support WIFI)

    Requires IOS version 10.0 or later

    Requires Android OS version 4.4 or later

    Search”LedShop”in App Store or Google pay or scan this QR code to download and install the App

    Specifications:

    Working temperature : -20~60 Degrees Celsius

    Working Voltage : DC5V~24V

    Working Current :20mA~130mA

    Remote distance :30 Meters

    Product size : 85mm*45mm*22mm

    Product weight : 40g

    Certificates : CE, RoHS

    control leds:2048pixel

    Working Mode and Connecting:

    AP(Access Point) mode:Controller and Phone connect directly, controller works as an access point.

    Connect steps:

    1 When the device is not connected to any WIFI network, power on the controller and wait for 20s and then controller will switch intoAP mode

    2 In the WIFI setting page,find and connect the controller(named likeSP108E_xxx, the default pin code is 12345678)

    3Open the LED Shop App ,then the controller will be showed on the device list

    STA(Station) mode:Controller and phone are in one same WIFI network, in this network, users can operate the controller smoothly.

    Connect steps:

    1 When the device is not connected to any WIFI network,power on the controller,controller will be remain inWait-For-Connet mode for 20 seconds

    2 Make sure that your phone is connected to a WIFI network, Open LED Shop APP, pressing the Add Device button,input the WIFI pin code, then press theOKto confirm and wait for the configure processing finish

    3 When controller successfully enter the WIFI network, it will be showed on the device list

    4 User can select the controller and remove it out of the network by pressing theRemove Device button,then the controller will switch into AP mode.

    Package Include:

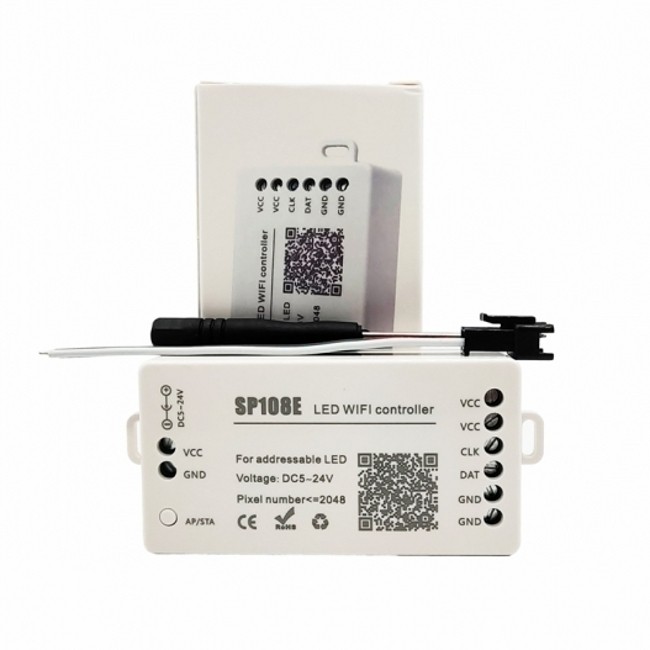

    1x SP108E Wifi LED controller

    1x 3pin female JST connector

    1x Mini screwdriver

    1x User manual

    (Note: power supply/mobile/controller/led strip not include!)

    SP108E_Led_Strip_Wifi_Pixel_Controller_1
    SP108E_Led_Strip_Wifi_Pixel_Controller_2
    SP108E_Led_Strip_Wifi_Pixel_Controller_3
    SP108E_Led_Strip_Wifi_Pixel_Controller_4
    SP108E_Led_Strip_Wifi_Pixel_Controller_5

    CE and RoHS approved
