WF100 Wifi Controller For Android Or IOS System With RF Remote

Be the first to review this product

Availability: In stock

€30.54
  • Buy 24 for €29.62 each and save 4%
  • Buy 100 for €28.70 each and save 7%
  • OR

    Quick Overview

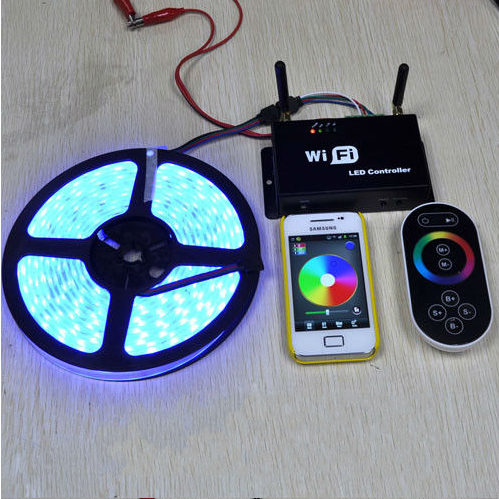

    WF100 Wifi Controller For Android Or IOS System With RF Remote

    WF100 Wifi Controller For Android Or IOS System With RF Remote

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest WiFi technical in the market. It makes the LED control more convenience, more hommization. We can use an Android system or iOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer. Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 50m, in outdoor can control more than 100m. In the condition of not use the mobile software, also can use the remote control to control, very convenience, bring many choices for you.



    Working temperature: -20~60 celsius

    Power supply method: AAA*3

    Supply voltage: 1.5V*3

    Standby power: 0.015mW

    Standby current: 3uA

    Working current: 200uA

    Emission current: 10mA

    Remote control distance: about 50m

    Standby time: 6 month



    Name:Dream Color

    Runtime platform: Android version support Android system (better one can support Samsung, HTC), iOS version support iOS system, equipment must have WiFi function.

    Byte: Android version(622K)IOS version(581K)

    Language: English

    Category: communications

    Free, green, no plug-ins


    Working voltage: DC 5~24V

    Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.

    Output current: 4A*3

    Connect mode: common anode

    External dimension: L107*W65*H30(mm)

    Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g OFDM(-15dBm)


    Package Included:

    1 Piece of Wifi Controller Receive Box

    1 Piece of RF Remote

    1 Piece of Manual

    1 Piece of Mini CD

    Following is controlling color temperature and brightness two mode page:

    WiFi_RGB_LED_controller_use

    CT mode page (cold warm white mixed mode)    DIM mode page (dimmer mode)

    WiFi_RGB_LED_controller

    black_WiFi_wireless_remote_RGB_LED_controller_package

    WiFi_wireless_RGB_LED_controller

    black_WiFi_wireless_RGB_LED_controller

    black_WiFi_wireless_RGB_LED_controller_package


    CE and RoHS approved
