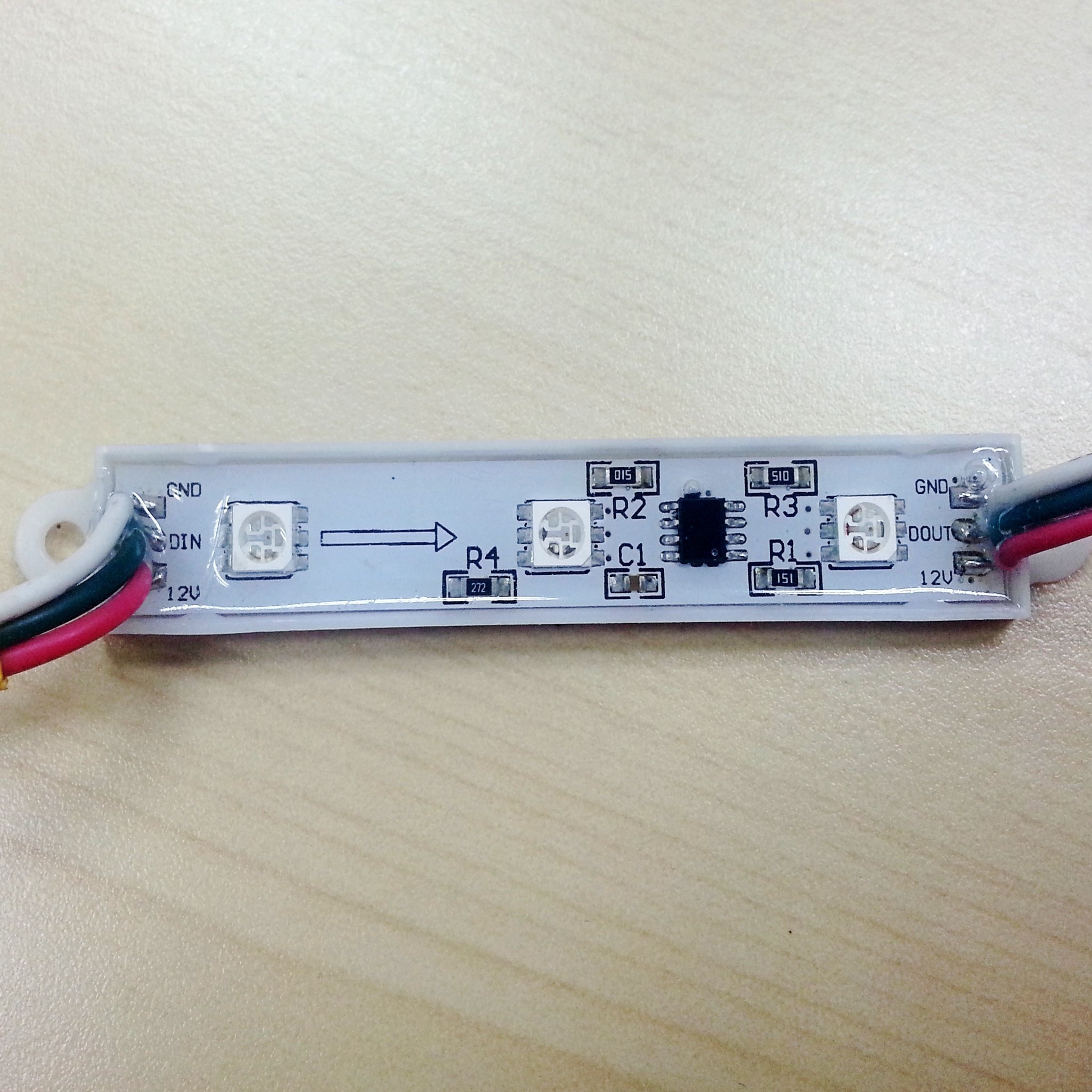

This 3 digital UCS1903 RGB module provides a digitally controlled solution for module lighting. It is great for sign makers and customers requiring their modules to perform display functions traditional RGB common anode modules are unable to. Common uses for this digital module include backlighting channel letters, stage shows, halo lighting signs, directional under cabinet lighting, cove and accent lighting and may be found in many night clubs, bars, restaurants, casinos and music venues. Each individual module contains 3 RGB SMD5050 LEDs with a 120 degree beam angle.
IC type: UCS1903
Gary scale: 256
Current:18.5mA ±3%
Working voltage:DC12V
LED type: SMD 5050
Color: RGB full color
3 piece of LED as a pixel
Power: 0.72W for 1 piece, 14.4W for 20pcs/String
Beam angle: 120 °
Light source life: 50 000 hours
Protection rate: IP65 Waterproof
Adhesive: double-sided adhesive tape
Shell material: ABS anti-static
Size: approx 75x15x9mm (this size does not include the holes)
Package Included:
1 String of 20pcs UCS1903 Led Pixel Module 12v 3LEDs 5050 RGB Light (20pcs/string)
CE and RoHS approved
Additional Information
| Weight | 0.4100 |
|---|
