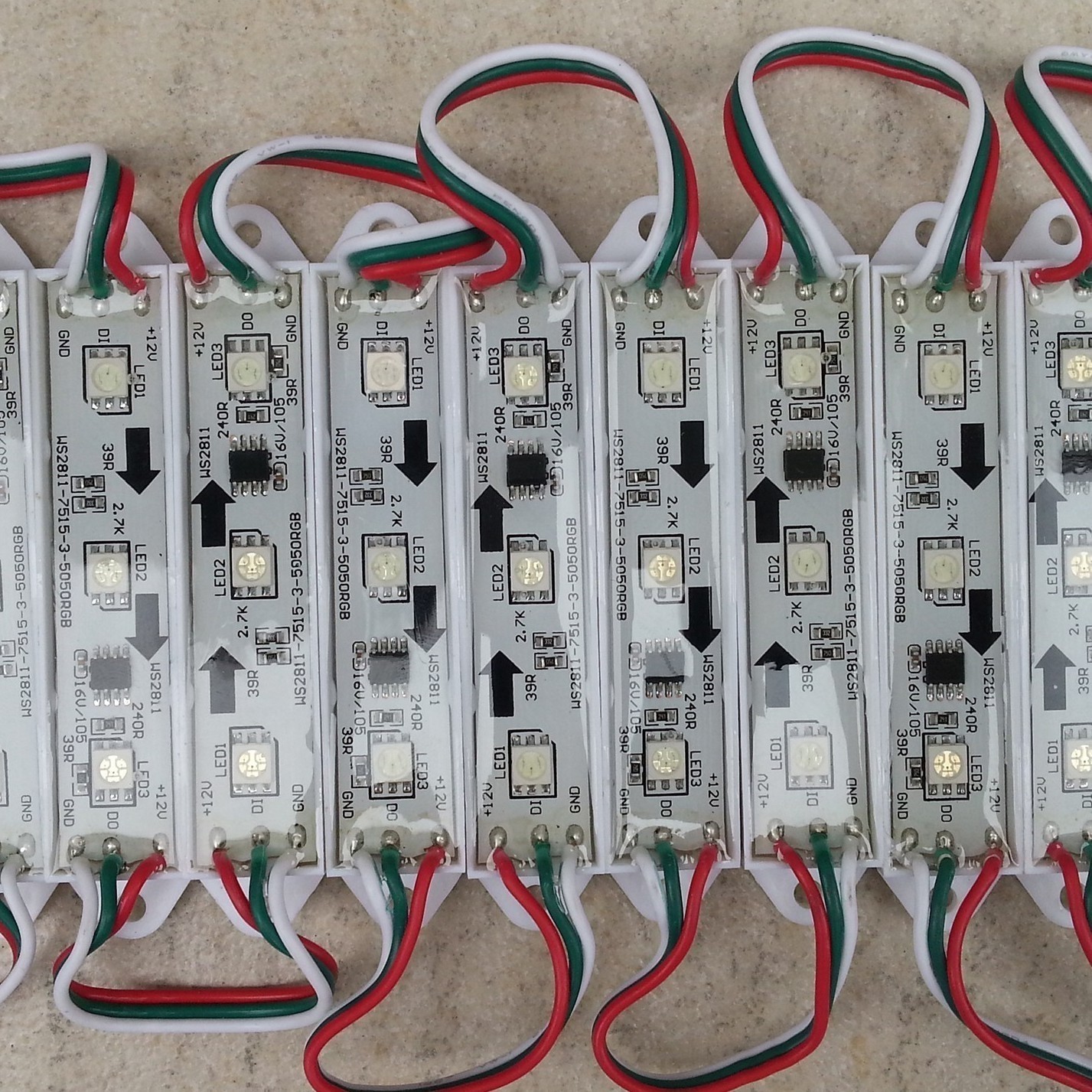

WS2811 IC waterproof led pixel module, 3pcs SMD RGB 5050,1pcs WS2811 IC, 256 gray level, DC12V, 0.72W/pcs, 20pcs/string
IC type: WS2811
rgb LED pixel lighting (WS 2811 IC)
Working Voltage: DC12V
3 piece of LED as a pixel, 1 individual module is 1 pixel, total are 20 pixels for 1 sting
LED QTY: 3leds/pc, so total is 60leds for 1 sting
LED Type: SMD5050 RGB
LED view angle: 120 degree
Waterproof IP grade:IP67 wateproof
PCB Color: White
Emitting Color: RGB
Power Consumption: Max 0.76W for 1 individual module, total is approx 15W for 1 sting.
Size: approx. 78x18x9mm (this size does not include the holes)
Brightness Level: 256 level
Package Included:
1 sting of 20 pcs 3 RGB SMD5050 LEDs DC 12V WS2811 Digital Addressable LED Modules
(1 sting contains 20 pcs individual module, 1 individual module contain 3pcs RGB LEDs and 1 WS2811IC)
CE and RoHS approved
Additional Information
Weight | 0.4100 |
---|
