Details

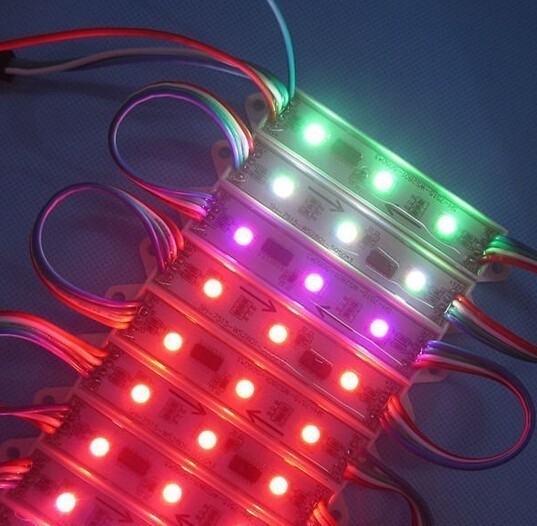

Digital Addressable WS2801 LED Pixel Module String 3LEDs SMD5050 12V
Parameter
1) Working Voltage: DC 12V
2) IC type: WS2801
3) IC quantity: 1 piece for each module, total is 20 ics for 1 sting
4) LED type: SMD 5050 RGB
5) LED quantity: 3pcs
6) Pixel: each module is one pixel, so total is 20 pixels for 1 sting
7) Max power: 0.8W/pcs
8) Bit: 8
9) Grey scale: 256 levels
10) Size: 91x14x6.8mm
11) Waterproof IP grade: IP67 waterproof
Connection
1) Signal wire: DC+, CLK, DAT, GND
2) DC+ and GND connect to power supplier; CLK, DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2801; when use DMX decorder, can connect to DMX system
4) Support online control
Color
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
Installation Notice
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
Package Included:
1 Sting of 20 Pieces WS2801 IC 3 LED Pixel Modules Square Light DC 12V
(3 LEDs is a Unit, and 1 sting has 20 units, so total is 60 LEDs for 1 sting.)
CE and RoHS approved
Additional Information
Weight | 0.4100 |
---|
