Details
Specification:
Working voltage: DC 5V
Working current: 60 mA
Working consumption: 0.3W
Working temperature: 40°C~ 60°C
Protection grade: IP68 waterproof
Dimension: 25*18.5*22mm
LED type: 1pcs strawhat
LED quantity: 1pcs
Viewing angle: >90 degrees
Lifespan: MTBF>50000 hours
Features:
Programmable by software
Individually control
Conformal coating, PVC glue protection
IP68 waterproof protection
Easy installation (punching 12mm hole on metal panel)
50pcs per set
Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15 bit color for 32,768 different shades). The pixels must be clocked by a micro controller.
Package includes:

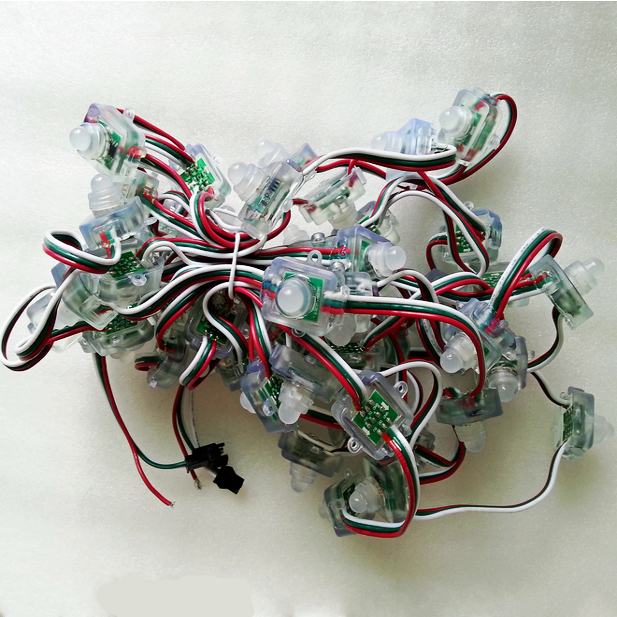

1 Sting of 50 Nodes 5V IP68 WS2811 IC Rectanglar RGB LED Pixel Light
The pixels use 8mm diffused RGB LEDs with brightness of about 300 mcd per individual R/G/B LED.
This digital WS2811 IC RGB LED pixel light can work with T-1000S SD card controller:
Specification:
Working voltage: DC 5V
Working current: 60 mA
Working consumption: 0.3W
Working temperature: 40°C~ 60°C
Protection grade: IP68 waterproof
Dimension: 25*18.5*22mm
LED type: 1pcs strawhat
LED quantity: 1pcs
Viewing angle: >90 degrees
Lifespan: MTBF>50000 hours
Features:
Programmable by software
Individually control
Conformal coating, PVC glue protection
IP68 waterproof protection
Easy installation (punching 12mm hole on metal panel)
50pcs per set
Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15 bit color for 32,768 different shades). The pixels must be clocked by a micro controller.
Package includes:
1 Sting of 50 Nodes 5V IP68 WS2811 IC Rectanglar RGB LED Pixel Light
The pixels use 8mm diffused RGB LEDs with brightness of about 300 mcd per individual R/G/B LED.
This digital WS2811 IC RGB LED pixel light can work with T-1000S SD card controller:
CE and RoHS approved
Additional Information
| Weight | 0.3700 |
|---|
