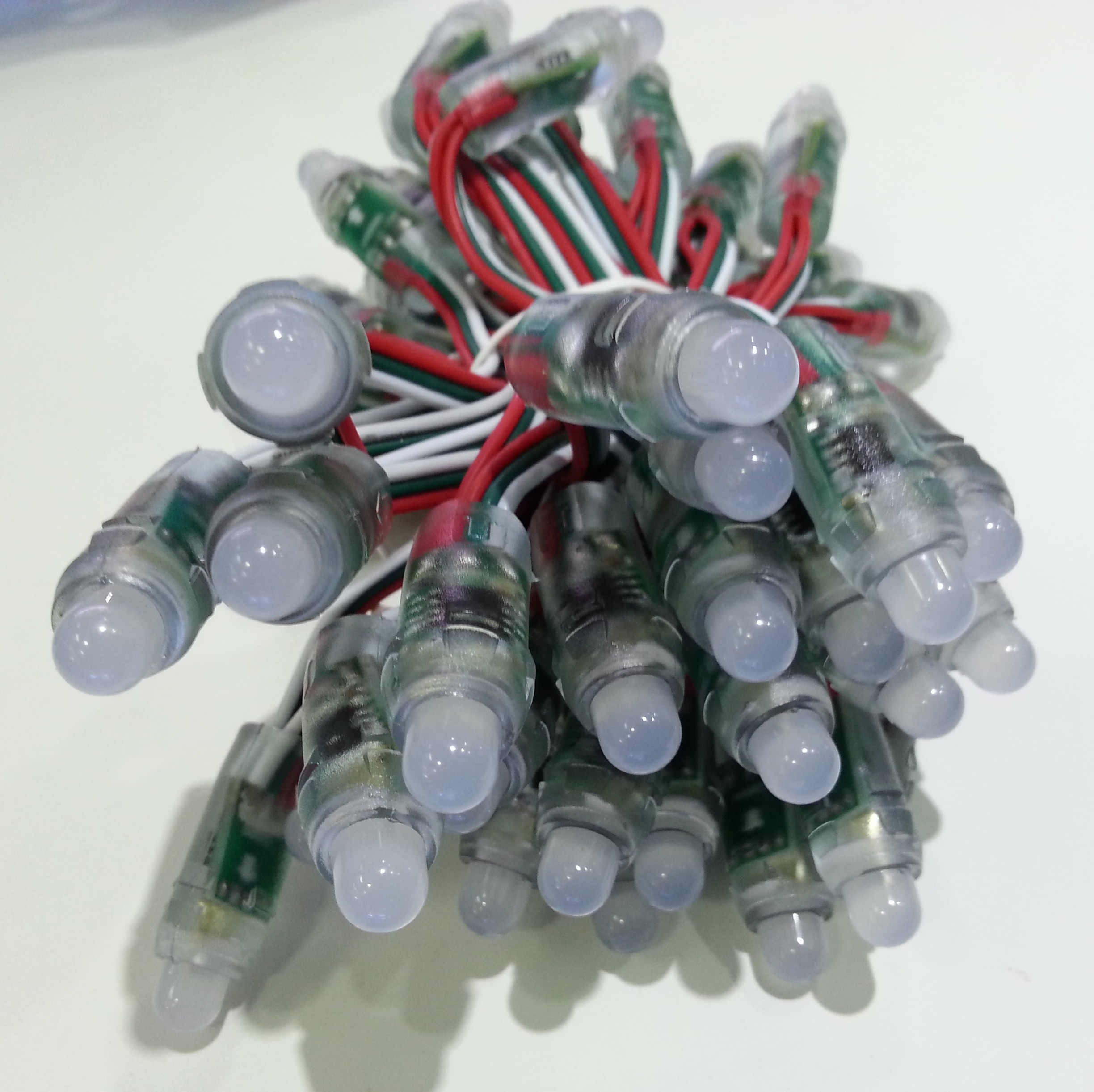

DC 5V UCS1903 IC Waterproof LED Pixel Module 12mm Exposed Light

Be the first to review this product

Availability: In stock

€15.54

Quick Overview

DC 5V UCS1903 IC Waterproof LED Pixel Module 12mm Exposed Light

* Required Fields

€15.54
  • DC 5V UCS1903 IC Waterproof LED Pixel Module 12mm Exposed Light

    Double click on above image to view full picture

    Zoom Out
    Zoom In

    More Views

    Details

    Specification:

    IC type: UCS1903

    IC quantity: 50 pieces

    Gray scale: 256 levels

    LED type: 8mm full RGB strawhat LED, brand Epistar LED, excellent performance

    Dimension: 12x14mm

    RGB LED quantity: 50 pieces

    Protection rate: Pls Choose;IP67 or IP68

    Viewing angle: 120 degrees

    Working voltage: DC 5V

    Working current: 60 mA

    Working consumption: 0.3 watt 15W/Sting,  (One String has 50pcs LEDs.)

    Working temperature: 40~60 Celsius

    Application:

    outdoor, indoor use, cove lighting, path and contour lighting, backlight for signage letters, architectural lights for canopy, corridor, window, archwa, DIY lights for home use, marine light, task lighting, replacement of fluorescent light, decorative lights for holiday, event, show, exhibition

    Package include:

    1 Sting of DC 5V UCS1903 IC Waterproof LED Pixel Module 12mm Exposed Light

    UCS1903_IC_RGB_LED_pixel_light

    5V_1903_LED_Pixel_Module_IP68_Waterproof_12mm_Exposed_Point_Light


     The following photos are showing usingC1000 SD Card Controller to control 1903 LED Module DC 5V Waterproof RGB LED Pixel Module, you would design the lettering message or the patterns via this controller. Here is our product link for this C1000 LED Pixel Controller C1 SD-card Controller Max 2048 Pixels :http://szdealer.com/led-controller/sd-card-controller/c1-sd-card-led-controller-c1000-pixel-controller-max-2048-pixels.html

    You just need to connect the led pixel module and power the led pixel at DC 5V like following photo:

    5V_1903_LED_Pixel_Module_IP68_Waterproof_12mm_Exposed_Point_Lights



    CE and RoHS approved
