Details
Specification:
1) Working Voltage: DC 12V
2) IC type: UCS1903
3) IC quantity: 1 piece per light, total 20 ICs for 1 string
4) LED type: SMD 5050 RGB
5) LED quantity: 3 piece per light, total 60 LEDs
6) Pixel: each module is one pixel
7) Max power: 0.72W Per Piece. 20 Pcs for 1 sting, total 14.8W for 1 sting
8) Bit: 8
9) Greyscale: 256 levels
10) Diameter: 30mm, waterproof protection
11) Package: 20 pieces/string
12) Distance between lights: 120mm
Cover Style: Pls Choose; Transparent Cover or Frosted Cover
Connection
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support UCS1903; when use DMX decorder, can connect to DMX system
4) Support online control
Color
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
Installation Notice
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
Package include:

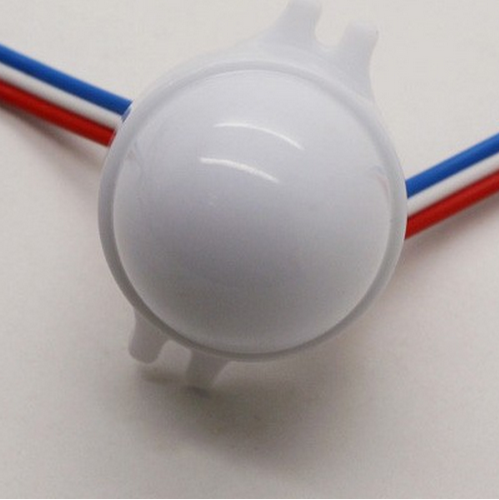

1 Sting of 20 pcs UCS1903 RGB 5050 LED Point Light 12V 30mm waterproof Pixel Module
CE and RoHS approved
Additional Information
| Weight | 0.4000 |
|---|
