Details
Specification:
1) Working Voltage: DC 24V
2) IC type: DMX512
3) IC quantity: 1 piece per light, total 50 ICs for 1 string
4) LED type: SMD 5050 RGB
5) LED quantity:6 LEDs per light, total 300 LEDs
6) Pixel: each module is one pixel
7) Max power: 1.44W/piece. 50 Pcs for 1 sting, total 72W for 1 sting
8) Bit: 8
9) Greyscale: 256 levels
10) Diameter: 40mm, waterproof protection
11) Package: 20 pieces/string
12) Distance between lights: 120mm
Cover Style: Pls Choose; Transparent Cover or Frosted Cover
Color
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
Installation Notice
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
Package include:

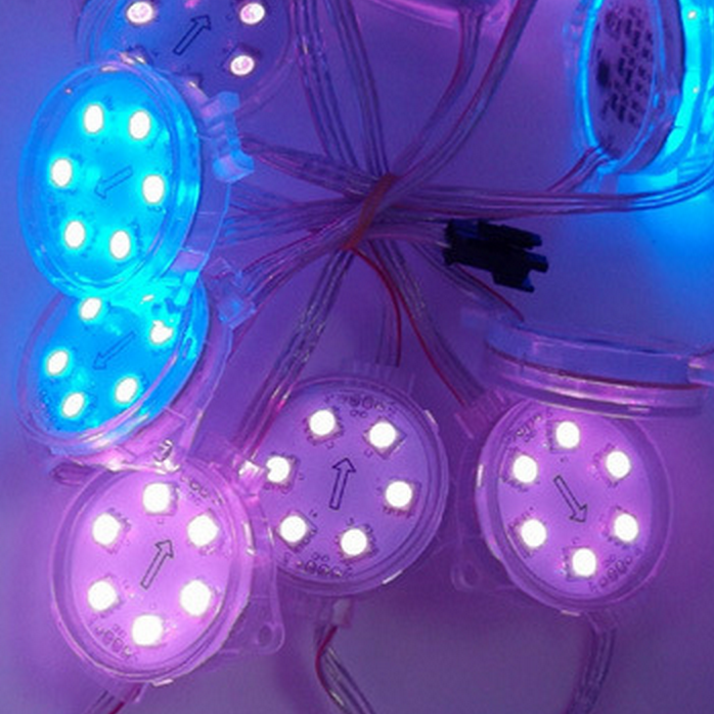

1 Sting of 50 pcs 40mm 24V DMX512 SMD5050 RGB IP68 Waterproof LED Point Light
CE and RoHS approved
Additional Information
| Weight | 0.6500 |
|---|
