Details
IC type: APA102
IC quantity: 24 per meter is default, 30, 36, 60 is optional. 5 meters length, total is 120, 150, 180
Light source: genuine Taiwan Epistar RGB 5050 LED with heat sink, ultra bright
LED quantity: 24 per meter is default, 30, 36, 60 is optional
Grey scale: 256 levels
Power: 0.24W per LED
Working voltage: DC 5V
Beam angle: 120 degrees
FPC Pls Choose: black or white color, 12mm width
Length: 5 meters (16.4 feet)
IC/LED Quantity Per Meter:Pls Choose
20,30,36,60
Protection rate: Pls Choose
IP22 non-waterproof IP65 dripping glue and silica tube casing waterproof is optional
Operating temperature: -20~+45 C
Certification: CE, RoHS
Package includes:

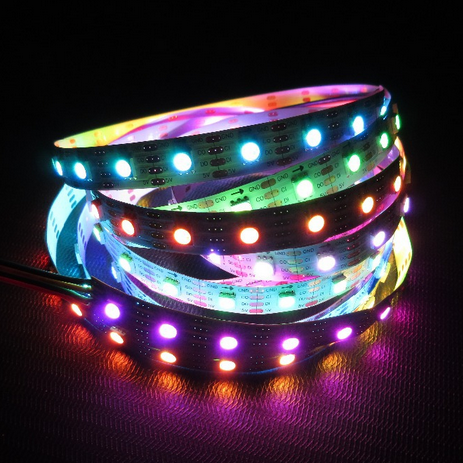

1 Roll of 5m 5V Individually Programmable APA102 IC Epistar RGB 5050 LED Strip
Programmable dream color APA102 LED strip, brand new SMD LED type APA102, this is similar to the WS2801 chip.
APA102 for the three-color RGB LED dimming control IC, using the CMOS process, providing three-color RGB LED output driver to adjust the output with 256 gray-scale with two-output way, the CLK signal by synchronization, so that the crystal cascade piece of output movements synchronized.
Advantage with this LED, the chip has already been installed in the LED similar to LED WS2812B.
The LEDs have a clock IN and data IN connection, and the corresponding outputs for the next LED.
The APA102 LED has a slightly different response than the WS2801 chip, this should be considered when programing
Applications:
Light up colorful home life, DIY household lights for hallways, stairs, trails, windows.
Hotels decoration use, theaters, clubs, shopping malls, festivals and performances use.
Architectural decorative lighting, archway, canopy and bridge edge lighting, security lighting and emergency.
Extensively applied in backlighting for signage letters, concealed lighting and advertisement sign lighting.
Applicable for automobile & airplane model decoration, contour lighting or border.
CE and RoHS approved
Additional Information
| Weight | 0.3100 |
|---|
